Brand Name : | Hongruntong Marine |
Model Number : | HM-VTF16 |
Certification : | ISO, BV, ABS, DNV, LR, SGS, CCS, RMRS |
Price : | USD16 to 860 Per Piece |
Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability : | 3600 Pcs Per Month |
Delivery Time : | 5-7 Work Days |

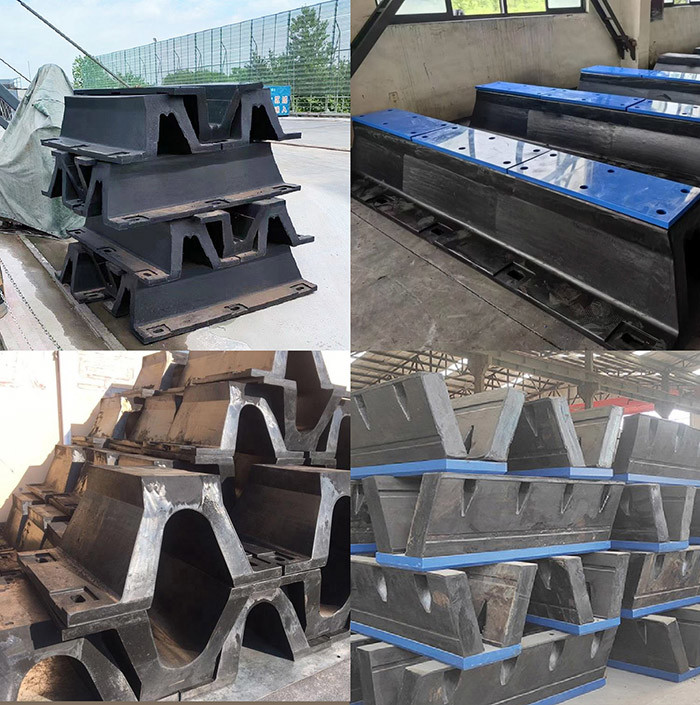

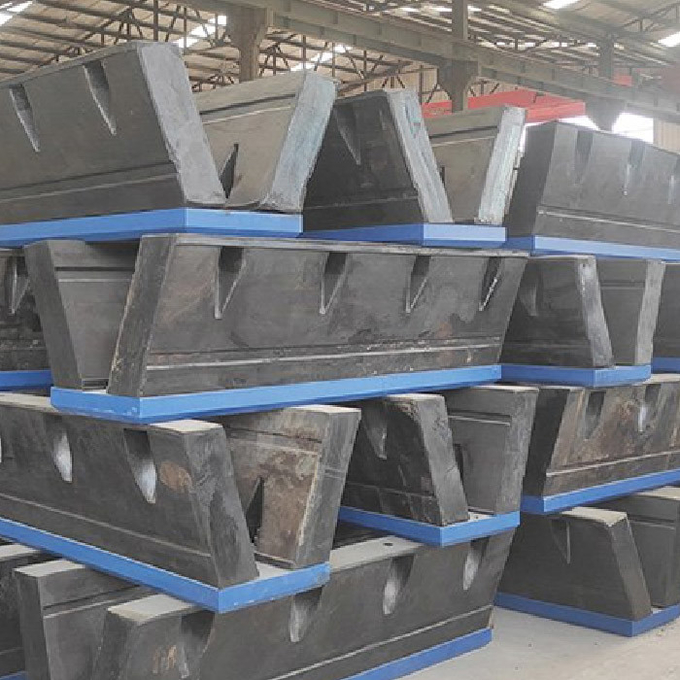

Hot Sale V Type Fender Top Quality Marine Ship Boat Rubber Fender
Description
Specifications
Product Name | Hot Sale V Type Fender Top Quality Marine Ship Boat Rubber Fender |
Model Number | HM-VTF16 |
Material | High Performance Natural Rubber |
Standard | HGT2866-2016, PIANC2002 |
Shape | V Type |
Feature | Easy Replacement Firm for Installation |
Part | Dock Bumper |
Usage | Dock Port Wharf Boat Ship |
Surface | Matte/Smooth |
Packing | Pallet or Wooden Case |
Keywords | Arch Rubber Fender/V Rubber Fender |
Model | A | D | E | F | H | K | M | R x Q | Lmax |
V Type | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] |
HM-VTF150 | 50 | 240 | 326 | 98 | 150 | 16 - 20 | 108 | 20 × 40 | 3000 |
HM-VTF200 | 50 | 320 | 422 | 130 | 200 | 18 - 25 | 142 | 25 × 50 | 3000 |
HM-VTF250 | 62.5 | 400 | 500 | 163 | 250 | 20 - 30 | 164 | 28 × 56 | 3500 |
HM-VTF300 | 75 | 480 | 595 | 195 | 300 | 25 - 32 | 194 | 28 × 56 | 3500 |
HM-VTF400 | 100 | 640 | 808 | 260 | 400 | 25 - 32 | 266 | 35 × 70 | 3500 |
HM-VTF500 | 125 | 800 | 981 | 325 | 500 | 25 - 32 | 318 | 42 × 84 | 3500 |
HM-VTF600 | 150 | 960 | 1160 | 390 | 600 | 28 - 40 | 373 | 48 × 96 | 3000 |
HM-VTF800 | 200 | 1300 | 1550 | 520 | 800 | 41 - 50 | 499 | 54 × 108 | 3000 |
HM-VTF1000 | 250 | 1550 | 1850 | 650 | 1000 | 50 - 62 | 580 | 54 × 108 | 3000 |
*Note: Other sizes can be customized according to the requirements. |
Features
High Energy Absorption
The V Type Fender is engineered to offer exceptional energy
absorption, providing superior protection to both the vessel and
the dock during impact. This makes it ideal for high traffic marine
environments where frequent and intense contact occurs.
Compact and Efficient Design
With its unique V shaped profile, this fender offers a compact yet
efficient solution for space-limited docking areas. The design
allows for a high performance impact resistance while minimizing
the overall footprint, making it perfect for a variety of marine
applications.
Durable and Long Lasting
Made from high quality rubber compounds, the V Type Fender is
highly resistant to wear, UV degradation, and extreme weather
conditions. This ensures a long lifespan, reducing maintenance
costs and improving the overall cost-effectiveness for port
operators and vessel owners.
Versatile Installation Options
The V Type Fender is adaptable to a wide range of installation
methods, whether it’s mounted horizontally, vertically, or at an
angle. This versatility allows for optimal installation depending
on the specific docking conditions, ensuring reliable performance
across diverse marine environments.
Applications
● General cargo
● Container berths
● RoRo
● Cruise terminals
● Berth for barge and tugboat
● General cargo wharf
● Ferry terminal
Advantages
Quality
DockFender V type fenders always maintain high quality. We insist
on using 100% natural rubber, coupled with a special angle design,
so that our V type rubber fenders can be more durable and perform
better.
Service
DockFender adheres to the principle of customer first. Our
professional customer service team can not only provide you with
the most professional product recommendations, but also help you
customize project solutions.
After sales Service
DockFenderA's fixed V type fenders can be guaranteed for 24 months.
As long as you use it normally, we can guarantee replacement for
any product quality problems during the warranty period.
Customize
All products of DockFender can be specially customized according to
customer requirements, let us know your needs!
FAQ
1. What is the primary benefit of a V Type Fender over other fender
types?
The V Type Fender provides high energy absorption with a compact
design, making it ideal for environments with limited space but
requiring robust impact protection. Its V shape allows for better
deflection and efficient load distribution, ensuring superior
performance during heavy impacts.
2. What materials are used in the V Type Fender construction?
V Type Fenders are typically made from durable, high quality rubber
compounds such as synthetic elastomers or natural rubber. These
materials are resistant to wear, UV exposure, and extreme weather
conditions, ensuring a long service life even in harsh marine
environments.
3. Can V Type Fenders be installed on any type of docking
structure?
Yes, the V Type Fender is versatile and can be installed on various
types of docking structures, including piers, quay walls, and
floating docks. Its design allows for flexible installation
options, whether horizontally, vertically, or angled, to
accommodate specific docking requirements.
4. How long can a V Type Fender last before needing replacement?
The lifespan of a V Type Fender depends on factors like
environmental conditions, frequency of impact, and maintenance
practices. However, with proper installation and regular
maintenance, V Type Fenders are designed to last for several years,
often 10-15 years or longer, making them a cost-effective choice
for marine applications.
![]() |
