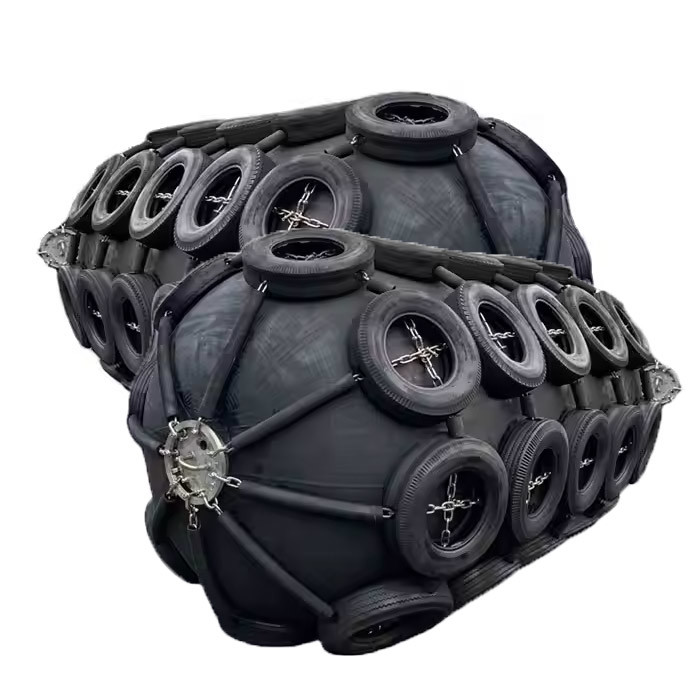

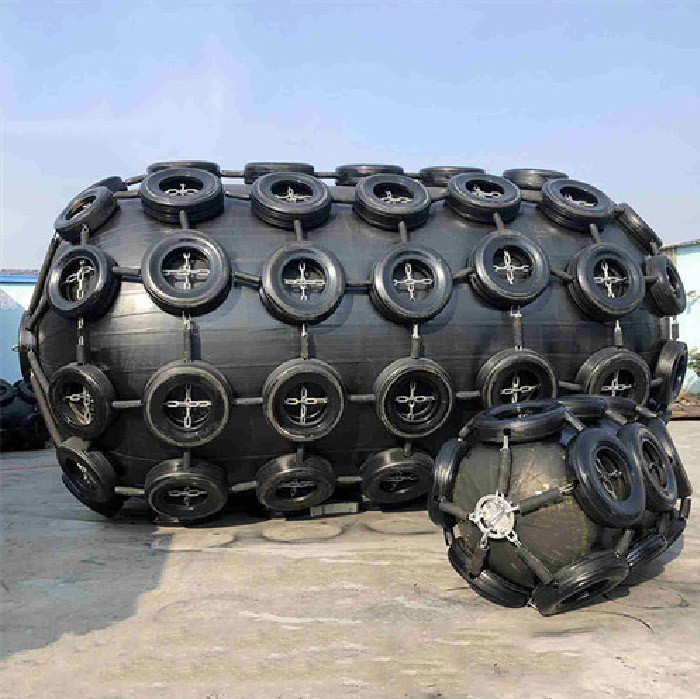

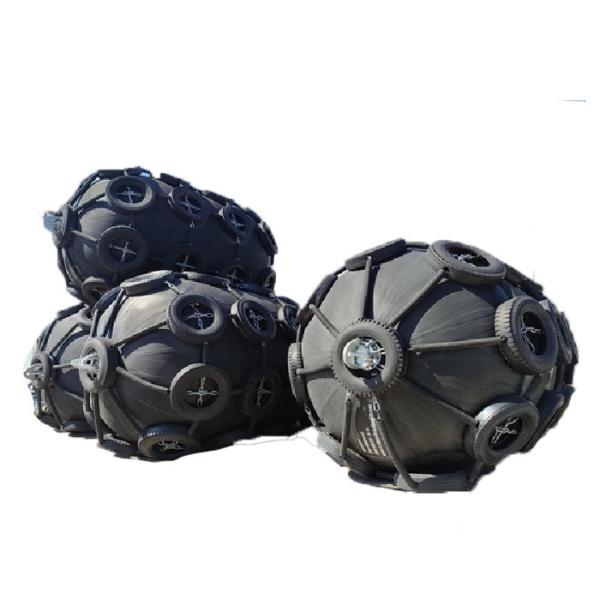

    50kPa Pressure Yokohama Baby Fender Customized for Marine Transportation

    Ask Lasest Price
    Brand Name : Hongruntong Marine
    Model Number : HM-PRF84
    Certification : ISO, BV, ABS, DNV, LR, SGS, CCS, RMRS
    Price : USD25-USD380
    Delivery Time : 10-20 Days
    Payment Terms : T/T, L/C, D/A, , D/P, Western Union, MoneyGram
    Supply Ability : 1040 Pcs/Month
    • Product Details
    • Company Profile

    50kPa Pressure Yokohama Baby Fender Customized for Marine Transportation

    50kPa Pressure Yokohama Baby Fender Customized for Marine Transportation
    Description
    The Pneumatic Rubber Fender is designed to withstand extreme pressure and rough conditions, making it ideal for use in harsh marine environments. The fender has a service life of 10~15 years, which makes it a cost-effective solution for long-term use. It is also resistant to abrasion, corrosion, and UV rays, ensuring that it remains in excellent condition even after years of use.
    The Pneumatic Rubber Fender is available in two pressure ratings of 50kPa and 80kPa, making it suitable for use on different types of vessels. The fender provides excellent protection against impact and collision, ensuring the safety of the vessel and its crew. It is easy to install and maintain, making it a popular choice among marine operators worldwide.
    The Pneumatic Rubber Fender is also known as a Pneumatic Marine Fender or an Inflatable Rubber Fender. It is widely used in various marine applications, including ship-to-ship transfer, ship-to-quay transfer, and offshore platforms. The fender is also suitable for use in ports, harbors, and other marine facilities.
    Overall, the Pneumatic Rubber Fender is an excellent choice for marine operators looking for a reliable, durable, and cost-effective solution for protecting their vessels. Its customizable size, pressure rating, and color make it a versatile option for different marine applications.
    50kPa Pressure Yokohama Baby Fender Customized for Marine Transportation50kPa Pressure Yokohama Baby Fender Customized for Marine Transportation50kPa Pressure Yokohama Baby Fender Customized for Marine Transportation50kPa Pressure Yokohama Baby Fender Customized for Marine Transportation

    Specifications

    Place of Origin China
    Brand Name Pneumatic Rubber Fender
    Model Number HM-PRF84
    Material Natural Rubber
    Color Black
    Application

    In ports with extreme tidal variations

    Ship-to-ship lightering operations

    Oil Gas (typically FSRU)

    Temporary berthing

    Feature Heat Resistance
    Sample Usually free
    Production Method Moulding
    Temperature -40℃~300℃
    Packing Pallets
    Lead time 7-14 days

    Diameter x Length
    [mm]
    50kPa
    Performance Data
    80kPa
    Performance Data
    Hull Pressure
    at GEA
    / kN / m2
    Reaction Force
    / kN
    Energy Absorption
    / kNm
    Hull Pressure
    at GEA
    / kN / m2
    Reaction Force
    / kN
    Energy Absorption
    / kNm
    1000 x 1500 122 182 32 160 239 45
    1000 x 2000 132 257 45 174 338 63
    1200 x 2000 126 297 63 166 390 88
    1350 x 2500 130 427 102 170 561 142
    1500 x 3000 153 579 153 174 761 214
    1700 x 3000 128 639 191 168 840 267
    2000 x 3500 128 875 308 168 1150 430
    2500 x 4000 137 1381 663 180 1815 925
    2500 x 5500 148 2019 943 195 2653 1317
    3300 x 4500 130 1884 1175 171 2476 1640
    3300 x 6500 146 3015 1814 191 3961 2532
    3300 x 10600 158 5257 3067 208 6907 4281
    4500 x 9000 146 5747 4752 192 7551 6633
    * Other size can be produced follow client's requirements.

    Features

    Adaptable Shape
    The spherical design allows for smooth rolling action upon contact, further minimizing vessel movement and enhancing stability.

    Safety Features
    Built-in safety mechanisms prevent over-inflation and ensure fenders perform reliably under varying conditions.

    Eco-Friendly Materials
    Many manufacturers use materials that are environmentally friendly and non-toxic, minimizing environmental impact.

    Customizable Specifications
    Fenders can be tailored to meet specific engineering and operational requirements, providing bespoke solutions for different clients.

    Applications

    Emergency Response and Salvage Operations

    Marine Transportation and Logistics

    Rooftop and Floating Platform Applications

    Prevailing Winds and Tidal Estuaries

    Advantages
    Comprehensive Support Services
    Offering installation, maintenance, and repair guidance to help clients maximize product lifespan.
    Strong Brand Reputation
    Recognized and respected brand within the marine industry for quality and reliability.
    Innovative Designs
    Commitment to continuously improving product design for enhanced performance and user satisfaction.
    Durability in Harsh Environments
    Proven capability to withstand extreme marine conditions, including UV exposure and saltwater.
    50kPa Pressure Yokohama Baby Fender Customized for Marine Transportation50kPa Pressure Yokohama Baby Fender Customized for Marine Transportation

    FAQ

    1. What is a pneumatic rubber fender?
    Pneumatic rubber fenders are buoyant fenders filled with compressed air, designed to absorb the kinetic energy of a vessel during berthing and mooring operations. They are typically cylindrical in shape and can be used in both ship-to-ship and ship to dock applications.
    2. What are the main advantages of pneumatic rubber fenders?
    High Energy Absorption: They can absorb substantial kinetic energy, providing good protection to both the vessel and the dock.
    Low Reaction Force: Compared to solid fenders, pneumatic fenders exert lower reaction forces on the berthing ship, minimizing damage.
    Lightweight and Easy to Handle: Their buoyant nature makes them easy to install, move, and handle during operations.
    Versatile Usage: Suitable for various marine operations, including ship-to-ship transfers and assisting tanker berthing.
    Durable Design: Made from high-quality rubber and designed to withstand harsh marine conditions, they have a long service life.
    Cost Effective: Their durability and performance can lead to lower long-term costs in maintenance and repairs.
    3. How do pneumatic rubber fenders work?
    The fender compresses upon impact, with the air inside absorbing the energy generated by the colliding vessels. The air cushion effectively mitigates the force of impact, reducing the risk of damage to both the vessels and the docking facilities.
