    Uv Resistant Dock Rubber Fender High Energy Absorption Low Reaction Force

    Ask Lasest Price
    Brand Name : Hongruntong Marine
    Model Number : HM-DRF12
    Certification : ISO, BV, ABS, DNV, LR, SGS, CCS, RMRS
    Price : US$22-US$325
    Payment Terms : T/T, L/C, D/A, D/P, Western Union, MoneyGram
    Supply Ability : 4589 Pieces Per Month
    Delivery Time : 5-8 Work Days
    MOQ : 1
    • Product Details
    • Company Profile

    Uv Resistant Dock Rubber Fender High Energy Absorption Low Reaction Force

    Uv Resistant Dock Rubber Fender High Energy Absorption Low Reaction Force


    Description

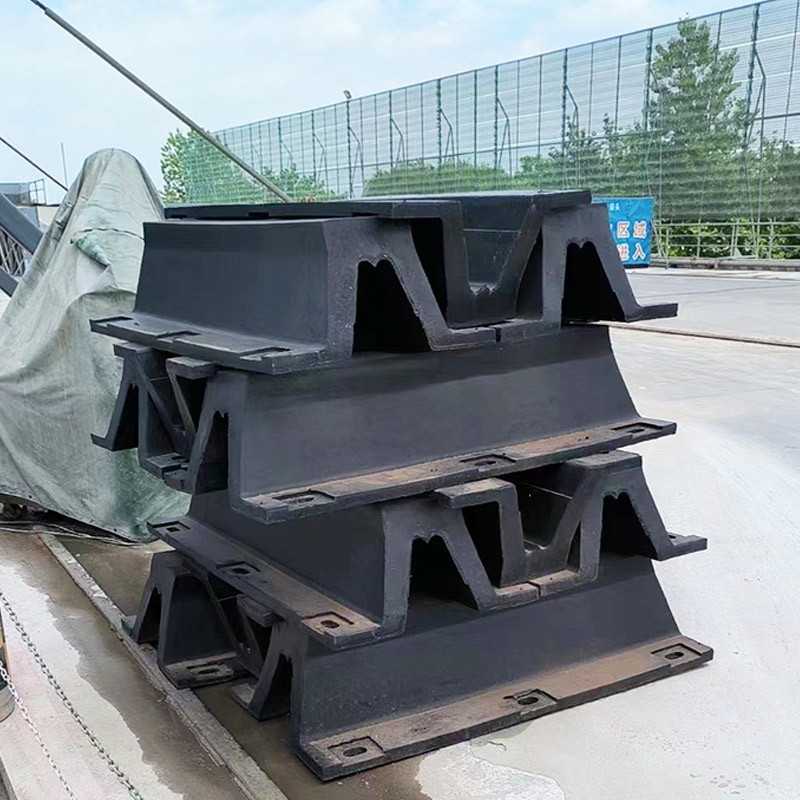

    Our Dock Rubber Fender V-Fender is engineered for superior impact absorption, protecting marine structures and vessels from collisions. Made from high-grade rubber, it offers excellent energy dissipation, durability, and resistance to harsh marine environments. The V-shaped design ensures optimal load distribution, reducing stress on docks and ships. Ideal for ports, harbors, and offshore platforms, our V-Fender provides long-lasting performance with minimal maintenance. UV-resistant and weatherproof, it withstands extreme conditions while maintaining flexibility. Available in various sizes and compression levels to meet different load requirements. Trust our V-Fender for reliable marine safety and cost-effective docking solutions.


    Uv Resistant Dock Rubber Fender High Energy Absorption Low Reaction ForceUv Resistant Dock Rubber Fender High Energy Absorption Low Reaction Force


    Specifications


    Product Name

    Dock Rubber Fender

    Material

    Natural rubber, Silicone rubber

    Colour

    Black, or customized

    Surface

    Smooth

    Size

    Height

    200-1000mm

    Length

    1000-3500mm

    All sizes can be customized

    Physical Properties

    Polymer Content

    100% virgin

    Working temperature

    -50℃~240℃

    Tensile strength

    ≥16 mpa

    Density

    90+/-5 Per 100mm in

    Hardness

    50-70 (shore A)

    Elongation

    ≥400%

    Features

    1. Through high temperature resistant

    2. Excellent tear resistant, oil resistant, aging resistant

    3. Resistant to industrial acid & alkali and good elastic

    4. Built as per PIANC2002

    Application

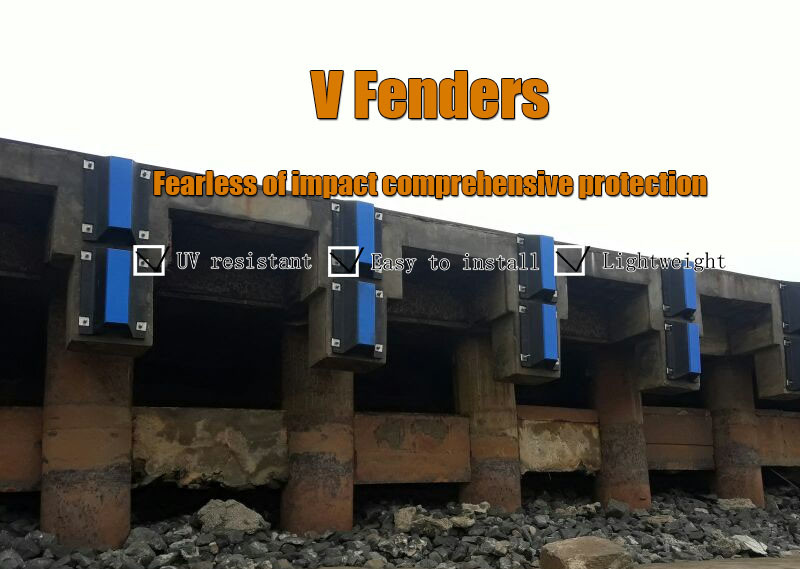

    Multi-Purpose-Terminals, RoRo ramps, Passenger Vessel Terminals, Barge


    Model

    W

    B

    F

    C

    H

    [mm]

    [mm]

    [mm]

    [mm]

    [mm]

    HM-DRF200H

    400

    320

    145

    128

    200

    HM-DRF250H

    500

    410

    175

    160

    250

    HM-DRF300H

    600

    490

    225

    196

    300

    HM-DRF400H

    800

    670

    300

    260

    400

    HM-DRF500H

    1000

    840

    375

    325

    500

    HM-DRF600H

    1200

    1010

    450

    390

    600

    HM-DRF800H

    1600

    1340

    600

    520

    800

    HM-DRF1000H

    2000

    1680

    750

    650

    1000



    Features


    Low Water Absorption
    Prevents swelling and loss of performance in wet environments.


    ISO PIANC Standards Compliance
    Meets international marine fender performance standards.


    Cost Effective Solution
    Reduces long-term repair and replacement costs for port operators.


    Noise Reduction
    Absorbs impact noise, making docking operations quieter and safer.


    Anti Ozone Protection
    Specially formulated rubber to resist ozone cracking in polluted harbors.



    Applications


    Commercial ports


    Container terminals


    Oil gas terminals


    Ferry terminals


    Advantages


    Modular Design Flexibility

    Supports hybrid fender systems (e.g., rubber + pneumatic).


    Energy Absorption Up to 70%+

    Superior kinetic energy dissipation.


    Multiple Shore Hardness Options (50A-75A)

    Tailored for different vessel weights.


    Noise Vibration Damping

    Reduces operational noise during berthing.


    Uv Resistant Dock Rubber Fender High Energy Absorption Low Reaction ForceUv Resistant Dock Rubber Fender High Energy Absorption Low Reaction Force


    FAQ


    1. Q: What materials are used in your dock rubber fenders?
    A: We use high-grade natural and synthetic rubber compounds with UV stabilizers and anti-aging additives.


    2. Q: What is the typical service life of your fenders?
    A: 10-15 years depending on environmental conditions and maintenance.


    3. Q: Do you offer custom sizes and shapes?
    A: Yes, we can manufacture fenders to meet specific dimensional requirements.


    4. Q: What temperature range can your fenders withstand?
    A: -30°C to +70°C (-22°F to +158°F).
