    4500mm X 9000mm NR Jumbo Fender Superior Energy Absorption

    Ask Lasest Price
    Brand Name : Hongruntong Marine
    Model Number : HM-YRF7
    Certification : ISO, BV, ABS, DNV, LR, SGS, CCS, RMRS
    Price : US$12-US$134
    Payment Terms : T/T, L/C, D/A, , D/P, Western Union, MoneyGram
    Supply Ability : 2000 Pcs Per Month
    Delivery Time : 5-6 Days
    • Product Details
    • Company Profile

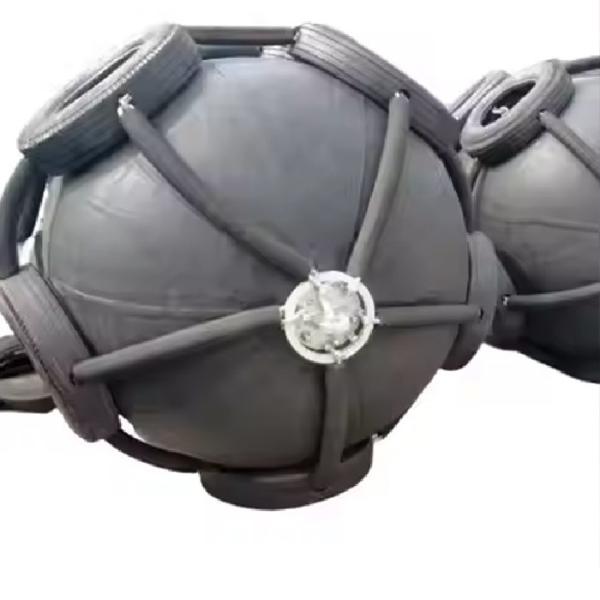

    4500mm X 9000mm NR Jumbo Fender Superior Energy Absorption

    4500mm X 9000mm Jumbo Fender With High Quality Material Superior Energy Absorption


    Description

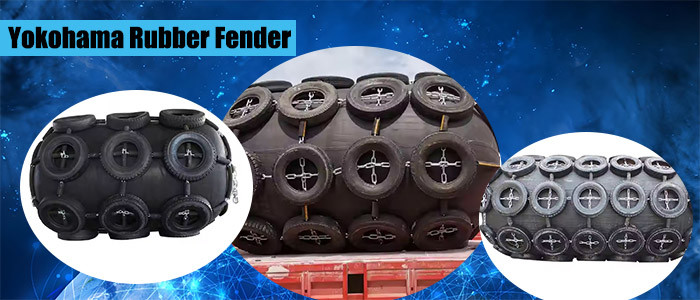

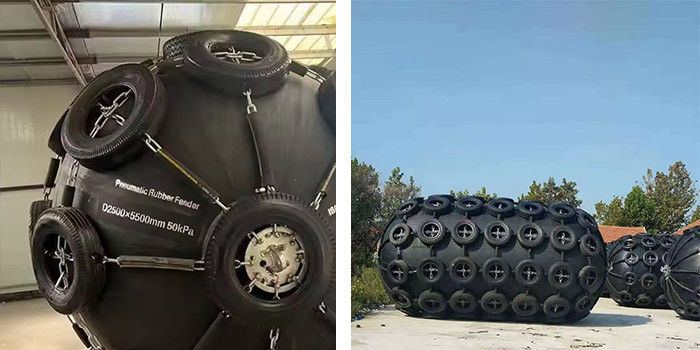

    The Yokohama Rubber Fender is a high-performance marine fender designed to provide superior impact absorption and protection for ships and docks. Developed using durable rubber and reinforced with synthetic fabric, it ensures longevity and resistance to harsh marine environments. Widely used in ports, ship-to-ship (STS) transfers, and offshore applications, this fender offers excellent energy absorption with minimal reaction force. Its pneumatic structure allows flexibility and adaptability to different tidal conditions, making it a reliable choice for various marine operations. Easy to install and maintain, the Yokohama Rubber Fender enhances safety and efficiency in maritime docking and berthing activities.


    4500mm X 9000mm NR Jumbo Fender Superior Energy Absorption


    Specifications


    Place of OriginChina
    Brand NameYokohama Rubber Fender
    MaterialNatural Rubber
    ColorBlack
    Application

    In ports with extreme tidal variations

    Ship-to-ship lightering operations

    Oil Gas (typically FSRU)

    Temporary berthing

    FeatureHeat Resistance
    SampleUsually free
    Production MethodMoulding
    Temperature-40℃~300℃
    PackingPallets
    Lead time7-14 days

    Diameter x Length
    [mm]
    50kPa
    Performance Data
    80kPa
    Performance Data
    Hull Pressure
    at GEA
    / kN / m2
    Reaction Force
    / kN
    Energy Absorption
    / kNm
    Hull Pressure
    at GEA
    / kN / m2
    Reaction Force
    / kN
    Energy Absorption
    / kNm
    1000 x 15001221823216023945
    1000 x 20001322574517433863
    1200 x 20001262976316639088
    1350 x 2500130427102170561142
    1500 x 3000153579153174761214
    1700 x 3000128639191168840267
    2000 x 35001288753081681150430
    2500 x 400013713816631801815925
    2500 x 5500148201994319526531317
    3300 x 45001301884117517124761640
    3300 x 65001463015181419139612532
    3300 x 106001585257306720869074281
    4500 x 90001465747475219275516633
    * Other size can be produced follow client's requirements.

    Features


    High Quality Material

    Yokohama fenders are made from high-grade rubber, ensuring durability and resistance to wear and tear, even in harsh environments.


    Innovative Design

    The fenders feature a unique design that provides better energy absorption and distribution, reducing the risk of damage to vessels during berthing.


    Extensive Range

    Yokohama offers a wide variety of fenders, including cylindrical, corner, and specialized designs, catering to different marine applications and vessel sizes.


    Superior Energy Absorption

    Equipped with advanced energy absorption capabilities, these fenders minimize shock loads on vessels and berthing structures, enhancing safety.

    Applications


    ● Ports and Harbors
    Ship-to-Ship Operations
    Container Terminals
    Oil and Gas Terminals

    Advantages


    Quick and Easy Installation
    No complex mounting required, making deployment fast and efficient.
    Stable Performance Under Pressure
    Maintains effectiveness even under extreme loads.
    Environmentally Friendly
    Made from sustainable materials and designed for long-term use.
    Trusted by Global Maritime Industry
    Preferred by ports, shipping companies, and offshore facilities worldwide.
    4500mm X 9000mm NR Jumbo Fender Superior Energy Absorption

    FAQ


    1. What are Yokohama Rubber Fenders used for?

    Yokohama Rubber Fenders are primarily used in marine applications for protecting vessels and berthing structures during the mooring process. They absorb shock and reduce impact forces.

    2. What materials are Yokohama Fenders made from?

    They are made from high-quality, durable rubber materials designed to withstand harsh marine environments, including exposure to UV rays and extreme weather conditions.

    3. What types of fenders does Yokohama offer?

    Yokohama offers a wide range of fenders, including cylindrical fenders, D-shaped fenders, corner fenders, and specialized fenders for specific applications.


    4. How do I determine the right size of fender for my vessel?

    The appropriate size of fender depends on various factors, including the size and weight of the vessel, the berthing conditions, and the specific application. Consulting with Yokohama representatives can help in making the right choice.
