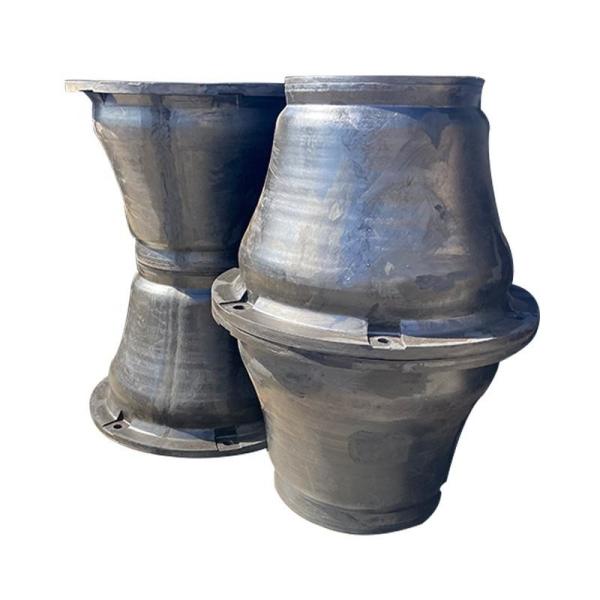

    PIANC 2002 Cone Fenders Natural Rubber 1000H For Dock Marine

    Ask Lasest Price
    Brand Name : DockFender
    Model Number : DF-1000H
    Certification : DNV, PIANC, ABS
    Price : USD600-3300 one piece
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 900 PCS Per Month
    Delivery Time : 5-7 Work Days
    • Product Details
    • Company Profile

    PIANC 2002 Cone Fenders Natural Rubber 1000H For Dock Marine

    PIANC2002 Specifications Cone Fenders Natural Rubber 1000H for Dock Marine


    Description


    Cone fenders are an improved version of cell type fender recently introduced and recommended for all type of applications including high tidal variation sites. This advanced feature of lesser heights of fenders improves material handling capabilities of vessel cranes which reduces overall cost of the project. Due to the geometry of the fender, it can deflect more and absorb more energy, can be achieved by using two identical cone fenders in a back to back arrangement. In order to distribute the reaction force, cone fenders are typically supplied with large fender panels, which keep the hull pressure low. Cone fenders have good energy absorption to reaction force ratio; Integrated and fully-embedded fender flanges make assembly & installation simple; Good shear force resistance due to the large diameter of the fender flanges; Large fender footprint with good force distribution could lead to relative light panel construction, cone rubber fender adopts tapered rubber with a steel frame at the head.

    Cone rubber fender is suitable for the docks that require low surface pressure of the ship’s panel, off-shore open berths and large docks like oil wharf and container terminal, as well as all places that are suitable for super cell marine fender.


    Specifications


    Product NamePIANC2002 Specifications Cone Fenders Natural Rubber 1000H for Dock Marine
    Brand NameDockFender
    Model NumberDF-1000H
    MaterialNatural Rubber
    StandardPIANC 2002
    AccessoriesH.D.G Chain, Bult, Nut, Washer, etc
    QualityExcellent
    ColorCustomers' Requirements
    ApplicationPort, Dock, Quay, etc
    PackingPallet, Wooden Case
    Service Life15-20 Years

    PIANC 2002 Cone Fenders Natural Rubber 1000H For Dock Marine


    TypesHhΦ1Φ2Φ3Φ4nD1Mdabs
    CONE50050025425325675750430M24475~9536
    CONE60060027510390810900630M24590~11040
    CONE700700325954559451050638M306105~12540
    CONE8008003668052010801200644M367120~14052
    CONE9009004176558512151350644M368135~15555
    CONE100010004585065013501500656M428150~17065
    CONE110011005093571514851650650M428165~18565
    CONE115011505299875015501725656M4210170~19570
    CONE1200120054102078016201800850M4210180~21075
    CONE1300130059110584517551950860M4811195~22575
    CONE1400140066119093018902100860M4812210~23570~80
    CONE16001600721360106021602400870M4814270~28070~80
    CONE180018007815301190243027001076M5616270~29070~80

    Features

    1. Exceptionally good energy absorption to reaction force ratio (E/R)
    2. Outstanding energy absorption per fender weight
    3. High shear stability
    4. No loss of performance up to 10° contact angle
    5. Sophisticated and optimized fender geometry
    6. Optional overload stopper

    Applications

    • Container Terminals
    • Bulk Terminals
    • Cargo Terminals
    • Oil & Gas Terminals
    • Cruise Terminals
    • Navy Ship Terminals
    • Coal and Mining Terminals

    Advantages


    ◆ Deflection up to 72.5%

    ◆ High Energy Absorption

    ◆ Highly Durable

    ◆ Range of Energy Absorption and Reaction Forces


    PIANC 2002 Cone Fenders Natural Rubber 1000H For Dock MarinePIANC 2002 Cone Fenders Natural Rubber 1000H For Dock Marine
