    Wharf 600h High Performance Arch Rubber Fender For Port Dock

    Ask Lasest Price
    Brand Name : DockFender
    Model Number : DF-ARF600
    Certification : PIANC2002, ABS
    Price : USD90 to USD2600 Per Piece
    Payment Terms : T/T, L/C, D/A, D/P, Western Union, MoneyGram
    Supply Ability : 5690 Pieces Per Month
    Delivery Time : 5-6 Work Days
    • Product Details
    • Company Profile

    Wharf 600h High Performance Arch Rubber Fender For Port Dock

    Wharf Rubber Fender Arch Bumper Fender 600H High Performance For Port Dock


    Description

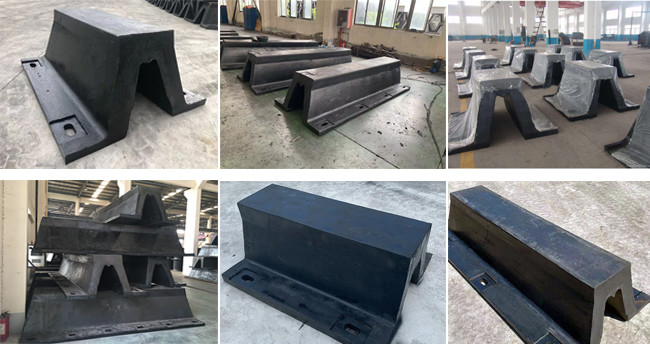

    The arch rubber fender is also known as V-type rubber fender is a kind of marine rubber fender, which can also embedded steel mount and nut on the top of the fender. It connects the front panel, UHMW-PE face pad installed outside of the front panel, which lowers the friction factor between vessel and fender to avoid the damage of vessel and raises the utility of fender life. The design of the arch fender is simple and durable, providing trouble-free service for a wide range of berths even under the toughest conditions.

    The arch rubber fender is made of quality natural rubber resistant to weather, seawater, cutting, abrasion, etc. The designs are simple and rugged, providing reliable and trouble-free service for a wide variety of ports. The rubber fenders are tough and reliable, simple and long-lasting, providing trouble-free service for a wide variety of berthing even under the most severe conditions. Arch fenders could be used as a single element, and also can mount the UHMW-PE pad as a system, which has a bigger compression ratio, higher energy absorption, and lower reaction force.


    Specifications


    Product NameWharf Rubber Fender Arch Bumper Fender 600H High Performance For Port Dock
    Brand NameDockFender
    Model NumberDF-ARF600H
    MaterialHigh Performance Natural Rubber
    ColorBlack and Customers' Requirements
    ShapeArch V Type
    StandardHGT 2866-2016, PIANC2002
    Energy Absorption3KN-M to 417KN-M
    Reaction Force78kN to 1015kN
    ApplicationPort, Dock, Quay, etc

    Wharf 600h High Performance Arch Rubber Fender For Port Dock


    ModelSpecifications (mm)
    HLL1CQnBB1B2B3habef
    DF-V150 x 1000L15010001075110855298240300962550952555
    DF-V150 x 2000L15020002075107.5620498240300962550952555
    DF-V150 x 3000L15030003075107.5715598240300962550952555
    DF-V200 x 1000L20010001100120860113532040012830581052975
    DF-V200 x 2000L20020002100120620313532040012830581052975
    DF-V200 x 3000L20030003100120715413532040012830581052975
    DF-V250 x 1000L25010001125130865116441050016033641253290
    DF-V250 x 2000L25020002125132.5620316441050016033641253290
    DF-V250 x 3000L25030003125132.5715416441050016033641253290
    DF-V300 x 1000L300100011501408701225490600195337014035105
    DF-V300 x 2000L30020002150137.56253225490600195337014035105
    DF-V300 x 3000L300300031501457154225490600195337014035105
    DF-V400 x 1000L400100012001509001300670800260408216541120
    DF-V400 x 2000L40020002200147.56353300670800260408216541120
    DF-V400 x 3000L400300032001507254300670800260408216541120
    DF-V500 x 1000L5001000125016093013758401000325459418047140
    DF-V500 x 2000L50020002250157.564533758401000325459418047140
    DF-V500 x 3000L5003000325015673043758401000325459418047140
    DF-V600 x 1000L600100013001709601450101012003905410019550160
    DF-V600 x 2000L60020002300167.56553450101012003905410019550160
    DF-V600 x 3000L600300033001707404450101012003905410019550160
    DF-V800 x 1000L8001000140018010401600134016005207213627068260
    DF-V800 x 2000L800200024001806803600134016005207213627068260
    DF-V800 x 3000L800300034001807604600134016005207213627068260
    DF-V1000 x 1500L1000150020002008002750168020006509013629068300

    Features


    1. Simple design makes it easy to install.
    2. Good shear resistance.
    3. Long service life.
    4. Ideal for installing on limited space.
    5. Wide range of uses, diversified installation.
    6. High resistance to reducing maintenance operations and hidden costs.


    Applications


    RoRo Berths
    General Cargo
    Workboat Harbors
    Barge and Tug Berths


    Advantages


    Quality

    DockFender arch fenders always maintain high quality. We insist on using 100% natural rubber, coupled with a special angle design, so that our arch rubber fenders can be more durable and perform better.


    Service

    DockFender adheres to the principle of customer first. Our professional customer service team can not only provide you with the most professional product recommendations, but also help you customize project solutions.


    After-sales Service

    DockFender 's solid arch fenders can be guaranteed for 24 months. As long as you use it normally, we can guarantee replacement for any product quality problems during the warranty period.


    Customize

    All products of DockFender can be specially customized according to customer requirements, let us know your needs!
