    DF-CRF600H Cone Rubber Fenders Natural Rubber For Marine Boat Dock

    Ask Lasest Price
    Brand Name : DockFender
    Model Number : DF-CRF600H
    Certification : PIANC, SGS, DNV
    Price : USD600-3600
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 2600 PCS Per Month
    Delivery Time : 5-8 Work Days
    • Product Details
    • Company Profile

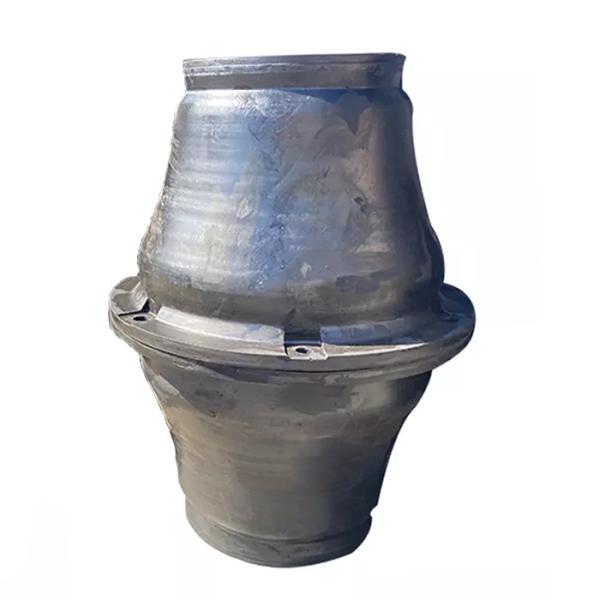

    DF-CRF600H Cone Rubber Fenders Natural Rubber For Marine Boat Dock

    DF-CRF600H Cone Rubber Fenders Natural Rubber Marine Boat Dock Customized


    Description


    Cone rubber fenders adopt the new structure design of cone rubber body and front steel frame, make the fender in the reaction under the condition of no increase, the design compression deformation increased from 52.5% to 70%, its emergence, can make the dock structure light-duty design and reduce the project cost, is an ideal alternative to the cell rubber fender. Besides, the installation of a facing pad (PE) in front of the front panel can reduce the friction coefficient between the ship and the fender, and greatly reduce the shear force (horizontal force) generated by the fender when the ship is berthing, thereby increasing fender life.


    Specifications


    Place of OriginChina
    Brand NameDockFender
    Model NumberDF-CRF600H
    Product NameDF-CRF600H Cone Rubber Fenders Natural Rubber Marine Boat Dock Customized
    MaterialHigh Quality Natural Rubber
    Warranty3 Years
    StandardPIANC2002, HGT 2866-2016
    Tensile Strength≥16 MPA
    Hardness65 +/- 5 Shore A
    ServiceOEM or ODM
    Processing ServiceMoulding, Cutting
    ApplicationPort, Dock, Boat

    DF-CRF600H Cone Rubber Fenders Natural Rubber For Marine Boat Dock


    ModelHhFDQWd-md-n
    Cone[mm][mm][mm][mm][mm][mm][mm][mm]
    DF-300H30013.5255450195405M1620
    DF-350H35025300570235510M2025
    DF-400H40018340600260540M2025
    DF-500H50025425750325675M2430
    DF-600H60027510900390810M2430
    DF-700H700325851050455945M3038
    DF-800H8003668012005201080M3644
    DF-900H9004176513505851215M3644
    DF-1000H10004585015006501350M4256
    DF-1050H105055103016809001530M3644
    DF-1100H11005093516507151485M4250
    DF-1150H11505299817257501550M4256
    DF-1200H120054102018007801620M4250
    DF-1300H130059110519508451755M4860
    DF-1400H140066119021009301890M4860
    DF-1600H1600721360240010602160M4870
    DF-1800H1800781530288011902430M5676
    DF-2000H2000801900320015402920M5676

    Installation Accessories


    Front Panel: Reduces surface pressure and avoids damage to fenders and boats.

    Face Panel: Reduce the coefficient of friction to protect the hull. Ultra-high molecular weight polyethylene.

    Pre-installed Bolts and Nuts: Used to secure the fender to the dock. 1Cr18Ni9Ti, SUS304, SUS316 stainless steel or Q235 hot dip galvanized.

    Preset U-Rings: Secure the chain. Q235 painted or hot dip galvanized.

    Anchor Bolt: Connect accessories such as fenders and front panels. Stainless steel (or hot dip galvanized).

    Weight Chain: Supports the front panel to avoid sagging. 1Cr18Ni9Ti, SUS304, SUS316 stainless steel or Q235 hot dip galvanized.

    Tension Chain: When the lower part of the fender is stressed, it limits the deflection of the fender. Q235 hot dip galvanized or painted.

    Shear Chain: Prevents shear deformation of the fender system. Q235 hot dip galvanized or painted.


    Features


    1. Exceptionally good energy absorption to reaction force ratio (E/R)

    2. Outstanding energy absorption per fender weight

    3. High shear stability

    4. No loss of performance up to 10° contact angle

    5. Sophisticated and optimized fender geometry

    6. Optional overload stopper


    Applications


    ● Berthing application

    ● Marinas

    ● Container terminals

    ● Oil facilities

    ● RoRo & Cruise terminals
