    Black Color Cell Rubber Fender OEM Service Anti Aging Protection

    Ask Lasest Price
    Brand Name : DockFender
    Model Number : DF-C1700H
    Certification : PIANC, ABS, DNV
    Price : USD320-1320 Per Piece
    Payment Terms : T/T, L/C, D/A, D/P, Western Union, MoneyGram
    Supply Ability : 630 PCS Per Month
    Delivery Time : 5-6 Work Days
    • Product Details
    • Company Profile

    Black Color Cell Rubber Fender OEM Service Anti Aging Protection

    Natural Rubber Cell Rubber Fender Black Color OEM Service Anti Aging Protection


    Description

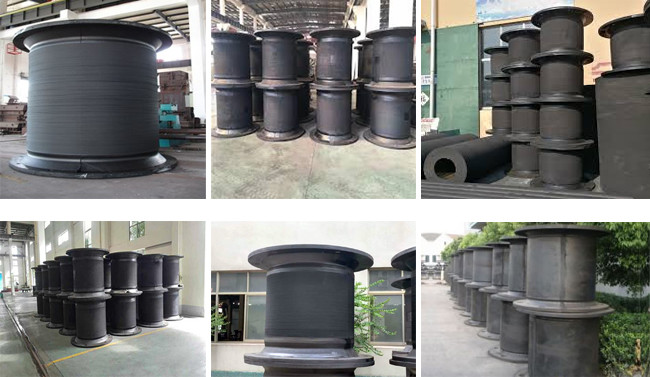

    The Cell Rubber Fender is a well-established rubber fender type, with a hollow cylindrical body and fully rubber-embedded mounting flanges. It is designed to deflect in an axial direction up to 52,5% (design deflection). Cell Rubber Fenders are available in heights between 500 and 3,000 mm.

    Unlike many compression fenders, cell rubber fenders feature the lowest compression performance change. This ensures that our fender is able to maintain impact absorption and resistance rates regardless of the weight of the vessel.


    Specifications


    Place of OriginChina
    Brand NameDockFender
    Model NumberDF-C1700H
    Product NameNatural Rubber Cell Rubber Fender Black Color OEM Service Anti Aging Protection
    MaterialHigh Density NR/NBR
    StandardHGT2866-2016, PIANC2002
    Height500-3000mm
    ColorMulti color
    CertificationABS, SGS, DNV, LR, CCS, BV, RS
    LogoCustomized logo available
    ShapeHollow O Shape
    ServiceOEM or ODM
    ApplicationUsed for protect the ship and dock

    Black Color Cell Rubber Fender OEM Service Anti Aging Protection

    ModelHhD1D2n-t
    Cell[mm][mm][mm][mm][mm]
    DF-C400H4002565055030
    DF-C500H5002565055032
    DF-C630H6303084070039
    DF-C800H80030105090040
    DF-C1000H1000351300110047
    DF-C1150H1150401500130050
    DF-C1250H1250451650145053
    DF-C1450H1450471850165061
    DF-C1600H1600502000180061
    DF-C1700H1700552100190066
    DF-C2000H2000552200200074
    DF-C2250H2250602550230074
    DF-C2500H2500702950270090
    DF-C3000H3000753350315090

    Features


    1. Easy assembly & installation.

    2. Good shear force resistance.

    3. Cost-effective, original factory.

    4. Very robust.

    5. 45 years proven track record.


    Applications


    ● Oil & LNG facilities

    ● Bulk terminals

    ● Offshore platforms

    ● Container berths

    ● RoRo & cruise terminals

    ● Multi-user berths

    ● General cargo terminals


    Advantages


    ◆ Original factory outlet.

    ◆ PIANC2002 and ISO9001/14001 standard.

    ◆ Imported raw materials-natural rubber.

    ◆ 100% self-inspection before shipment, third-party available.

    ◆ Easy installation with operation manual or on-site technical guidance.


    Rubber Properties


    PROPERTIESTEST STANDARDVALUES
    Compound-NR / SBR
    Density (Specific Gravity)DIN 535051200 kg/m3
    Tensile StrengthDIN 53504≥16 MPa
    Elongation at BreakDIN 53504≥350%
    Tear Resistance (23°C)DIN 53507≥80 N/cm
    Abrasion ResistanceDIN 53516≤100mm3
    Compression Set (24hrs @ 70°C)DIN 53517≤40%
    Ozone Resistance (ppm 20% 72hrs @ 40°C)ISO 143/1No cracking visible by eye
    Change In HardnessDIN 53504≤5°
    Change In Tensile StrengthDIN 53504≥80%
    Change In Elongation at BreakDIN 53504≥80%
    Minimum Temperature--30°C
    Maximum Temperature-+70°C
