    2.5*4.0M Foam Filled Marine Fenders Polyurethane Skin Safety Elasticity

    Ask Lasest Price
    Brand Name : DockFender
    Model Number : DF-2.5*4.0M
    Certification : PIANC, ABS, DNV
    Price : USD 90-2100 One Piece
    Payment Terms : T/T, L/C, D/A, D/P, Western Union, MoneyGram
    Supply Ability : 5700 Pcs Per Month
    Delivery Time : 8-9 Work Days
    • Product Details
    • Company Profile

    2.5*4.0M Foam Filled Marine Fenders Polyurethane Skin Safety Elasticity

    2.5*4.0M Floating Foam Fender Closed Cell Foam Eco Friendly Safety Elasticity


    Description

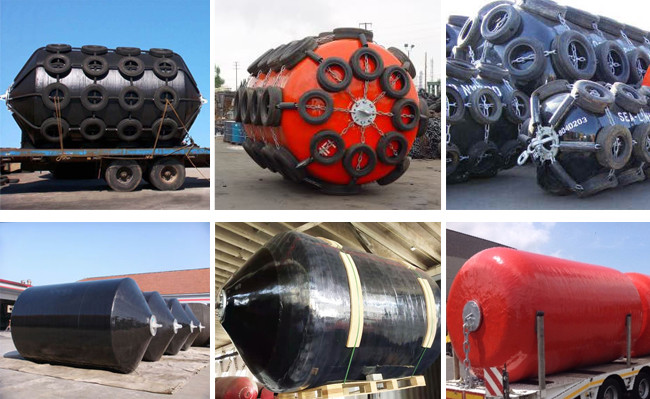

    Floating Foam Fender is often used in ship-to-quay and ship-to-ship berthing operations. They are used as alternatives to the normal pneumatic fenders. These fenders are made of polyurethane elastomer skin (or rubber skin), nylon reinforcement layer and closed-cell resilient foam. The performance of foam fenders is comparable to that of a pneumatic fender, but the fenders will not lose their function in case the skin gets punctured, and they have a high degree of wear resistance.


    Structure


    Foam Core - The closed cell EVA foam core used inside offers unsink ability during operation.


    Outer Rubber + Nylon Cord Fabrics - Specifically designed to seal EVA foam inside and to prevent any leakage.


    Polyurea Spraying Coating - Permanent spray on coatings that protect the surface of fender body. It is more durable than rubber and flexible in all weather conditions; no softening in heat or becoming brittle in cold.


    Specifications


    Place of OriginChina
    Brand NameDockFender
    Model NumberDF-2.5*4.0M
    Product Name2.5*4.0M Floating Foam Fender Closed Cell Foam Eco Friendly Safety Elasticity
    MaterialPU Foam, Inner Pipe, Nylon Reinforcement, Polyurethane Skin
    StandardHGT 2866-2016, PIANC 2002
    Density54-70kg/m³
    Tensile Strength≥414 kN/m³
    Diameter500mm-4500mm
    Length1000mm-9000mm
    ShapeCylindrical
    ServiceOEM or ODM
    ApplicationUsed for protect the ship and dock

    2.5*4.0M Foam Filled Marine Fenders Polyurethane Skin Safety Elasticity


    Diameter x LengthEnergy absorption at 60% compReaction force at 60% compApprox. weight
    (mm)(kNm)(kN)(kg)
    300 x 10003.85411
    500 x 100010.69141
    600 x 100015.310949
    600 x 100018.313155
    700 x 15003119185
    750 x 15003620489
    900 x 180062294140
    1000 x 150064272125
    1000 x 200085363170
    1200 x 2000122436275
    1200 x 2400146523365
    1250 x 2000132454353
    1250 x 2500165567410
    1500 x 3000286817570
    1500 x 40003811089720
    1700 x 3000367926700
    1700 x 35004281080780
    1800 x 3000412980850
    1800 x 36004941176965
    2000 x 30005081089965
    2000 x 350059312711100
    2000 x 400067814521220
    2400 x 400097617431720
    2400 x 4800117120912140
    2500 x 4000105918151865
    2500 x 5000132422692500
    2500 x 5500145624962675
    2700 x 5400166826472865
    3000 x 5000192527503200
    3000 x 6000228732683740
    3300 x 6500299838944735
    3600 x 7200395347065800
    4000 x 8000452258098700
    4200 x 84006277640510000
    4500 x 90007720735310700


    Features


    1. Easy to install.

    2. Virtually unsinkable.

    3. Low maintenance costs.

    4. Non-marking PU elastomer skin.

    5. High quality nylon cord reinforcement.

    6. Simple, effective internal engineering.

    7. High energy absorption/low reaction force.

    8. Available with best in class chain and tyre nets.


    Applications


    ● Tugboats

    ● Catamarans

    ● Workboats

    ● Rescue boats

    ● Pilot boats


    Advantages


    1. Quality: DockFender foam fenders always maintain high quality. We insist on using 100% closed cell foam, coupled with a special angle design, so that our floating foam fender can be more durable and perform better.


    2. Service: DockFender adheres to the principle of customer first. Our professional customer service team can not only provide you with the most professional product recommendations, but also help you customize project solutions.


    3. After-sales Service: DockFender 's solid arch fenders can be guaranteed for 24 months. As long as you use it normally, we can guarantee replacement for any product quality problems during the warranty period.


    4. Customize: All products of DockFender can be specially customized according to customer requirements, let us know your needs!
