Natural Rubber Roller Fenders NR / NBR Boat Mooring Bumpers

Hongruntong Marine Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Natural Rubber Roller Fenders NR / NBR Boat Mooring Bumpers from wholesalers

    Buy cheap Natural Rubber Roller Fenders NR / NBR Boat Mooring Bumpers from wholesalers
    • Buy cheap Natural Rubber Roller Fenders NR / NBR Boat Mooring Bumpers from wholesalers
    • Buy cheap Natural Rubber Roller Fenders NR / NBR Boat Mooring Bumpers from wholesalers
    • Buy cheap Natural Rubber Roller Fenders NR / NBR Boat Mooring Bumpers from wholesalers
    • Buy cheap Natural Rubber Roller Fenders NR / NBR Boat Mooring Bumpers from wholesalers

    Natural Rubber Roller Fenders NR / NBR Boat Mooring Bumpers

    Ask Lasest Price
    Brand Name : DockFender
    Model Number : DF-CR30
    Certification : ABS, DNV, CCS, PIANC
    Price : USD600-5600
    Payment Terms : T/T, L/C, D/A, D/P, Western Union, MoneyGram
    Supply Ability : 2300 Pcs Per Month
    Delivery Time : 7-8 Work Days
    • Product Details
    • Company Profile

    Natural Rubber Roller Fenders NR / NBR Boat Mooring Bumpers

    PIANC&ISO Roller Fenders Cushion Rollers NR/NBR Tear Resistance Dock Marine Bumper


    Description


    Cushion Roller Fenders are above all used to guide floating structures and pontoons up and down piles gently and quietly. The picture shows a typical way of using the cushion rollers against the piles. To withstand berthing impacts, the roller cushion can be supplemented by a rubber cushion pad, see pad behind the roller fender. On the backside of the pontoon clamp, two rollers fitted into a roller swing ensure that tilting movements of the pontoon are accommodated, and loads are always equally shared.


    Specifications


    Place of OriginChina
    Brand NameDockFender
    Model NumberDF-CR40
    Product NamePIANC&ISO Roller Fenders Cushion Rollers NR/NBR Tear Resistance Dock Marine Bumper
    ColorBlack/grey/blue, etc
    MaterialRubber
    Age Range15-20 Years
    SizeCustomized
    UsageDock Port Wharf Boat Ship
    SurfaceMatte/Smooth
    PackingPallet or Wooden Case
    KeywordsCushion Rollers / Roller Fenders / Roller Rubber Fenders / Wheel Rollers

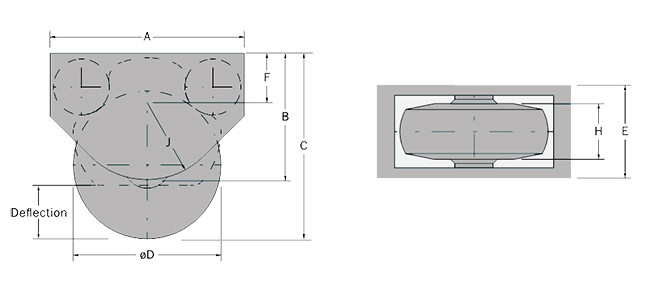

    1. Wheel Rollers

    Natural Rubber Roller Fenders NR / NBR Boat Mooring Bumpers

    Model No.ABCDEFH
    Wheel[mm][mm][mm][mm][mm][mm][mm]
    DF-D10801700100014501080900350460
    DF-D130020001200175013001000350510
    DF-D175026501500220017501150550690
    DF-D198027501750255019801250500760
    DF-D255033502200320025501600850970
    DF-D2900420025003750290017001000900

    2. Roller Type


    Natural Rubber Roller Fenders NR / NBR Boat Mooring Bumpers


    Model No.ABCDEGHJKL
    Roller[mm][mm][mm][mm][mm][mm][mm][mm][mm][mm]
    DF-D1080125011506101080115022046080034060
    DF-D1450153014007401320145026051095040075
    DF-D15001600145076513701500270610100042575
    DF-D190020501850975175019003506901250500125
    DF-D2100230021001110198021004007651400550150
    DF-D2700300027001425255027005008951800700200

    3. Cushion Rollers

    Natural Rubber Roller Fenders NR / NBR Boat Mooring Bumpers

    Model No.CapacityABCDTWa1a2a3b1b2
    CushionTons[mm][mm][mm][mm][mm][mm][mm][mm][mm][mm][mm]
    DF-CR1010T4504505423701301259031035380
    DF-CR1515T4504505423701301909017513535380
    DF-CR2020T4505205463701302508016012050420
    DF-CR2525T4505505463701303159017513535480
    DF-CR3030T4806305703801303159018012055520
    DF-CR4040T77072569045020035012030030070585

    Features


    1. Very low rolling resistance.

    2. Neutralizes a large amount of shear force.

    4. Special springtype design reduces impact energy.

    4. Copes easily with lateral/grazing loading when the vessels move parallel to the wharf.


    Applications


    ● Lock approaches

    ● Dry Dock entrances and walls

    ● Narrow entries, exits & corners


    Inspection & Certificate


    We use modern technology to design and manufacture, and through rigorous field testing.


    The following tests are to be conducted:

    - Rubber performance test including tensile, ozone and abrasion test.

    - Energy absorption and reaction test.


    Our QC department will inspect each product and offer FACTORY INSPECTION REPORT before delivery. We can also invite the third party inspection agencies including CCS, ABS, BV, LR, DNV-GL to inspect and offer certificates according to customer requirements.


    Inspect items as below:

    1. Rubber tensile, ozone and abrasion test.

    2. Rubber fender energy absorption and reaction test.


    Packing & Delivery


    Advantage: professional, efficient, economical and environmental.


    Duo to our products are large size and heaviness, normal we do not use packaging during shipping in order to reduce costs. So the professional packing skills are crucial, not only it need to protect our products, but also need to protect the containers, vehicles and personnel. Our core strength comes from years of work experience and a responsible attitude.
