    Marine Customizable V Type Dock Rubber Fender Good Shear Resistance

    Ask Lasest Price
    Brand Name : DockFender
    Model Number : DF-V400H
    Certification : ISO, BV, LR, ABS, SGS
    Price : USD100-260 One Piece
    Payment Terms : T/T, L/C, D/A, D/P, Western Union, MoneyGram
    Supply Ability : 1600 Pieces Per Month
    Delivery Time : 5-8 Work Days
    MOQ : 1 Piece
    • Product Details
    • Company Profile

    Marine Customizable V Type Dock Rubber Fender Good Shear Resistance

    Marine Customizable V Type Rubber Fender Black Color For Dock Port Berth


    Description

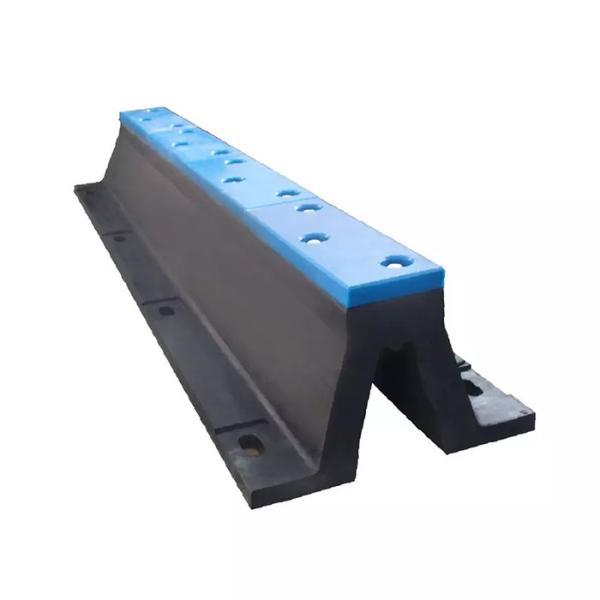

    V Rubber Fender is a V-shaped rubber fender. By optimization, it can absorb more energy than the traditional rubber fender. As one of the most popular marine fender systems in the world, v type fenders are simple and rugged. It can be used in limited space or restricted height conditions, and provides reliable service for a wide variety of berths even under the most severe conditions. V rubber fenders could be used as a single element, and also can mount the UHMW-PE pad as a system, which has a bigger compression ratio, higher energy absorption, and lower reaction force.

    V rubber fenders are molded from a single piece of rubber, and the simple design makes them easy to install and reduces the amount of maintenance required. The V type design can significantly reduce the torsion at the bottom of the fender. The base on both sides of the fender is attached to the dock surface, and the fenders can compress and move at will without deterioration under pressure, which gives them better stability and stronger adhesion to the supporting structure. Together with the use of UHMW-PE pad, it will also reduce the friction coefficient between the ship and the fender, avoiding damage to the ship and improving the service life of the fender.


    Specifications


    Place of OriginChina
    BrandDockFender
    Product NameMarine Customizable V Type Rubber Fender Black Color For Dock Port Berth
    Model NumberDF-V400H
    Rubber MaterialNR, NBR, SBR, EPDM, IIR, CR, SILICONE, VITON, etc
    Warranty24 Months
    After-sale ServiceOnline technical support
    Service Life15-20 years
    Quality CertificationISO 9001:2015 Certificated, SGS Certificated
    Safety StandardPIANC 20114
    TypeV type
    ApplicationPort, Dock, Quay, etc.
    AccessoriesPre-built, Chains, Face Panel, Front Panel, Connector, etc.
    PackingBare Packing, Frame Packing, Pallet Packing
    Tolerance±0.05 mm

    Marine Customizable V Type Dock Rubber Fender Good Shear Resistance

    ModelB (mm)b (mm)c (mm)d (mm)H (mm)h (mm)
    DF-V200H40032013012820030
    DF-V250H50041016416025033
    DF-V300H60049022519630033
    DF-V400H80067030026040040
    DF-V500H100084037532550045
    DF-V600H1200101045039060054
    DF-V800H1600134060052080072
    DF-V1000H20001680750650100090

    Features


    1. Has a bigger compression ratio, higher energy absorption, and lower reaction force.

    2. Simple design makes it easy to install.

    3. Good shear resistance.

    4. Long service life.

    5. High resistance to reducing maintenance operations and hidden costs.

    6. Ideal for installing on limited space.

    7. Wide range of uses, diversified installation.


    Applications


    ● RoRo Berths

    ● General Cargo

    ● Workboat Harbors

    ● Barge and Tug Berths
