    Heavy Duty Mooring Cast Iron Bollard 100 Tons For Boat Dock Ship Berthing

    Ask Lasest Price
    Brand Name : DockFender
    Model Number : DF-M100T
    Certification : ISO9001, BV, ABS
    Price : USD130 to USD 2800 One Piece
    Payment Terms : T/T, L/C, D/A, D/P, Western Union, MoneyGram
    Supply Ability : 6600 Pcs Per Month
    Delivery Time : 5-6 Work Days
    MOQ : 1
    • Product Details
    • Company Profile

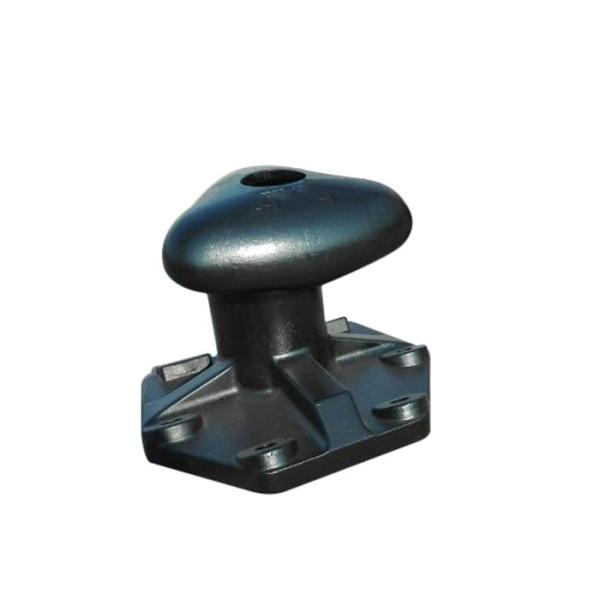

    Heavy Duty Mooring Cast Iron Bollard 100 Tons For Boat Dock Ship Berthing

    Heavy Duty Mooring Bollards Cast Iron 100 Tons Tee Head For Boat Dock Ship Berthing


    Description


    The marine mooring bollards are a post used on ship’s deck or quay. It is a simple and cost-effective way to fulfill mooring requirements and safely secure vessels alongside jetties, berths, wharves and dolphins in ports and harbors. It is welded by qualified steel tubes with plates. Different types and sizes of the mooring bollards are for sale at DockFender with best price, which including the single cruciform bollard, double cruciform one, NS2584 type one, DIN 82607 one, ISO13795 one, ISO13797 cruciform one, JIS F-2001 one, GOST11265-73 double cruciform one, dock bollard and other customized type bollard according to the requirement of clients.


    Specifications


    The shape of DockFender bollards has been refined with finite element techniques to optimize the geometry and anchor layout. Even at full working load, Trelleborg bollards remain highly stable and provide a safe and secure mooring operation.

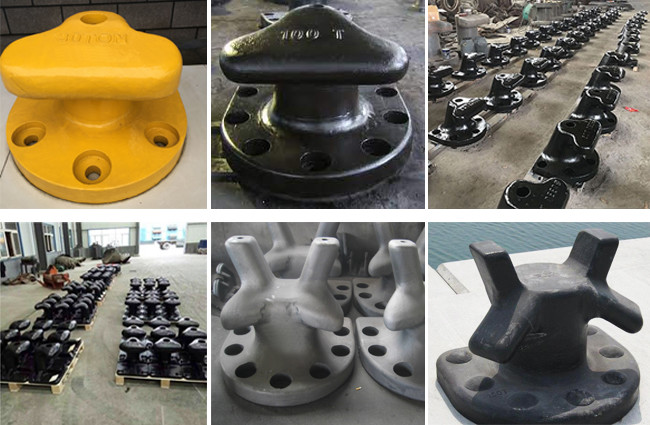

    These are Tee Head, Horn Staghorn, Pillar, Kidney, Cleat, Single Bitt and Double Bitt.


    Product NameHeavy Duty Mooring Bollards Cast Iron 100 Tons Tee Head For Boat Dock Ship Berthing
    Brand NameDockFender
    Model NumberDF-M100T
    MaterialCarbon Steel, Stainless Steel, Alloy, Ductile Iron
    ColorBlack and Customers' Requirements
    ShapeTee, Horn, Pillar, etc.
    StandardISO 13797:2020, PIANC2002
    Surface TreatmentAnti-rust treatment
    ApplicationPort, Dock, Quay, etc

    Heavy Duty Mooring Cast Iron Bollard 100 Tons For Boat Dock Ship Berthing


    Features


    1. Wide range of base shapes for choice.

    2. Strong & Long-lasting design.

    3. Standard loading ratings and anchoring system.

    4. Qualified epoxy coating.


    Applications


    ● Industrial Oil & Gas, Bulk mineral & liquid terminal berths.

    ● Material off-load & heavy-lift facilities.

    ● Commercial Ro-Ro, ferry, Container & fishing wharfs.

    ● Local authority, Recreational jetties & marinas.


    Coating System


    Mooring Bollards are supplied as factory standard with a protective coating suitable for most projects. High performance epoxy or other specified paint system can be factory applied on request in a choice of colors and thicknesses. Standard available coatings include (uncoated, zinc oxide primer or high performance epoxy).

    Mooring Bollards are also available and supplied with Hot Dip Galvanized (HDG) on special request basis. Wear and abrasion from ropes means paint coatings need regular maintenance. Ductile iron bollards are far less susceptible to corrosion than cast steel bollards, which can rust quickly and will need frequent painting to retain full strength.


    Quality Assurance


    Mooring Bollards are safety critical items and quality is paramount. Independent third party witnessing of test is available at additional cost on request. A typical quality documentation package will include:

    • Dimensioned drawings of bollard and accessories
    • Bollard and anchorage calculations (if required)
    • Inspection and test plan
    • Certificate of conformance
    • Physical, chemical and material properties report for casting and anchorages
    • Installation guidelines

    Heavy Duty Mooring Cast Iron Bollard 100 Tons For Boat Dock Ship Berthing
