    Marine Cone Shape Dock Rubber Fender Waterproof Black Dock Fenders

    Ask Lasest Price
    Brand Name : DockFender
    Model Number : DF-CS1300
    Certification : DNV, PIANC, ABS
    Price : USD550 one piece
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 2260 PCS Per Month
    Delivery Time : 5-7 Work Days
    • Product Details
    • Company Profile

    Marine Cone Shape Dock Rubber Fender Waterproof Black Dock Fenders

    Marine Cone Shape Dock Rubber Fender CS1300 Black Dock Fenders


    Description

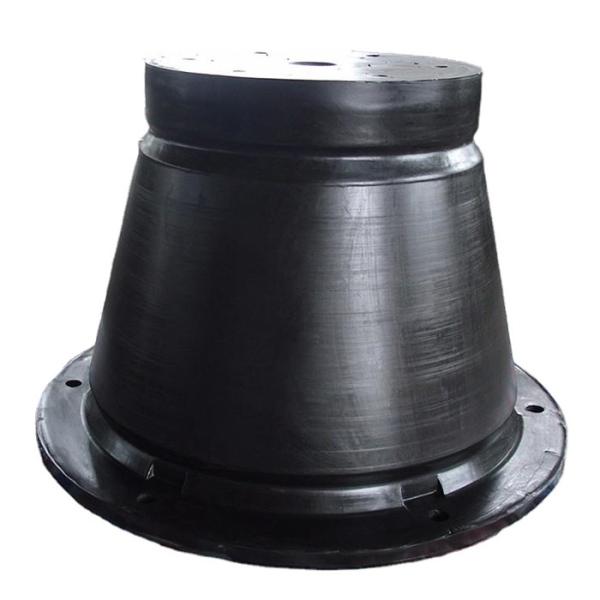

    The cone dock rubber fender has a very efficient shape due to the cone shape that makes the fender body stable. These fenders are fitted with a frontal frame to provide a wider contact area. Therefore, a combination of high energy capacity, low reaction force and high pressure stability can be achieved. This unit is suitable for ships with large docking angles, for example in port monopoles, dolphins, open jetties, terminals for containers and heavy goods. This type of fender can be installed easily and quickly.

    Cone fender is the latest generation of cell fender, with optimal performance and efficiency. The conical body shape makes cone fenders very stable, even at large compression angles, and provides excellent shear strength. Cone rubber fender is an optimized design. It can endure server shear force and increase deflection, high-energy absorption and longer service life.


    Specifications


    Product NameMarine Cone Shape Dock Rubber Fender CS1300 Black Dock Fenders
    Brand NameDockFender
    Model NumberDF-CS1300
    MaterialNatural Rubber
    StandardPIANC 2002
    QualityExcellent
    ColorCustomers' Requirements
    ApplicationPort, Dock, Quay, etc
    PackingPallet, Wooden Case
    Service Life15-20 Years

    Marine Cone Shape Dock Rubber Fender Waterproof Black Dock Fenders


    TypesHhΦ1Φ2Φ3Φ4nD1Mdabs
    CONE50050025425325675750430M24475~9536
    CONE60060027510390810900630M24590~11040
    CONE700700325954559451050638M306105~12540
    CONE8008003668052010801200644M367120~14052
    CONE9009004176558512151350644M368135~15555
    CONE100010004585065013501500656M428150~17065
    CONE110011005093571514851650650M428165~18565
    CONE115011505299875015501725656M4210170~19570
    CONE1200120054102078016201800850M4210180~21075
    CONE1300130059110584517551950860M4811195~22575
    CONE1400140066119093018902100860M4812210~23570~80
    CONE16001600721360106021602400870M4814270~28070~80
    CONE180018007815301190243027001076M5616270~29070~80

    Features


    1. More reasonable structure with increased deflection, high energy absorption and longer service time.

    2. Better performance in angular compression which will not reduce below 10℃ loading.

    3. Versatile specifications meet numerous design requirements.

    4. Versatile performance are available by adjusting compound formulation.

    5. Front Panel and face pad can be installed in the front to reduce the shear loading a lot.


    Applications


    ● Container Terminals

    ● Bulk Terminals

    ● Cargo Terminals

    ● Oil & Gas Terminals

    ● Cruise Terminals

    ● Navy Ship Terminals

    ● Coal and Mining Terminals


    Advantages


    ◆ Deflection up to 72.5%

    ◆ High Energy Absorption

    ◆ Highly Durable

    ◆ Range of Energy Absorption and Reaction Forces


    Marine Cone Shape Dock Rubber Fender Waterproof Black Dock Fenders


    Marine Cone Shape Dock Rubber Fender Waterproof Black Dock Fenders


    Marine Cone Shape Dock Rubber Fender Waterproof Black Dock Fenders
