    SGS V Type Fender Ozone UV Resistance Low Water Absorption Protection

    Ask Lasest Price
    Brand Name : DockFender
    Model Number : DF-V300H
    Certification : ABS, SGS, DNV
    Price : USD150 to 850 Per Piece
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 3500 Pcs Per Month
    Delivery Time : 5-7 Work Days
    • Product Details
    • Company Profile

    SGS V Type Fender Ozone UV Resistance Low Water Absorption Protection

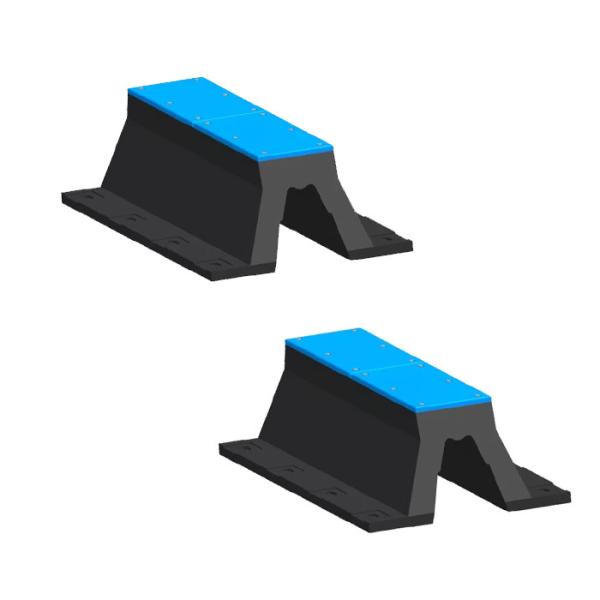

    300H V Type Rubber Fender Ozone & UV Resistance Low Water Absorption Protection


    Description


    For many decades around the world, V type rubber fenders and component fenders have been used successfully. These fenders are with relatively simple and durable structure and offer high wear-resistant rubber performance which provides a high level of wall and quay corner safety.

    The v type rubber fender has better stability and stronger attachment to the supporting structure than the traditional arch /v rubber fenders. It connects the front panel. This design can reduce the torsion at the bottom of the fender dramatically, the prolong the life-span of the rubber fender body. The UHMW-PE face pads have various colors and can be replaced easily.


    Specifications


    Place of OriginChina
    Brand NameDockFender
    Model NumberDF-V300H
    Product Name300H V Type Rubber Fender Ozone & UV Resistance Low Water Absorption Protection
    MaterialHigh Quality Natural Rubber
    StandardHGT2866-2016, PIANC2002
    Density1.35~2.0 g/cm3
    Tensile Strength≥16 MPA
    Application

    Multi-Purpose-Terminals

    RoRo ramps

    Passenger Vessel Terminals

    Barge

    PackingWooden Pallets, Wooden Case
    Advantages

    More safety and reliability

    More energy absorption

    Less reverse impact on ships

    Less weight, easy installation

    Environmental protection

    Size

    Height: 200-1000mm

    Length: 1000-3500mm

    Support Custom-made

    CertificatesCCS, CCC, SGS, BV, ISO9001:2008 PIANC2002

    SGS V Type Fender Ozone UV Resistance Low Water Absorption Protection


    ModelADEFHKMR x QLmax
    V Type[mm][mm][mm][mm][mm][mm][mm][mm][mm]
    DF-V150502403269815016 - 2010820 × 403000
    DF-V2005032042213020018 - 2514225 × 503000
    DF-V25062.540050016325020 - 3016428 × 563500
    DF-V3007548059519530025 - 3219428 × 563500
    DF-V40010064080826040025 - 3226635 × 703500
    DF-V50012580098132550025 - 3231842 × 843500
    DF-V600150960116039060028 - 4037348 × 963000
    DF-V8002001300155052080041 - 5049954 × 1083000
    DF-V100025015501850650100050 - 6258054 × 1083000
    *Note: Other sizes can be customized according to the requirements.

    Features


    1. High energy absorption & low reaction force.

    2. Strong and have good shear performance.

    3. Highly durable.

    4. Low maintenance.

    5. Long lifespan.

    6. Can be installed both vertically and horizontally.


    Applications


    ● General cargo

    ● Container berths

    ● RoRo

    ● Cruise terminals


    Advantages


    ◆ 32 years of professional manufacturing experience in rubber fender.

    ◆ Raw material testing machine, complete production line and finished product inspection equipment.

    ◆ ISO9001, 14001, certification of other classification societies.

    ◆ Excellent impact resistance: UHMWPE material not only has good wear resistance, but also has high impact resistance. Its impact strength is greater than 140 kg/ cm.

    ◆ The raw materials are safe and the effect is remarkable.
