    50kpa Floating Yokohama Rubber Fender Pneumatic Tyre Chain Net

    Ask Lasest Price
    Brand Name : DockFender
    Model Number : DF-2.0*3.5M
    Certification : ISO17357-1:2014, PIANC2014, ISO9001
    Price : $120-$560
    Payment Terms : T/T, L/C, D/A, D/P, Western Union, MoneyGram
    Supply Ability : 1500 PCS Per Month
    Delivery Time : 7 Working Days
    • Product Details
    • Company Profile

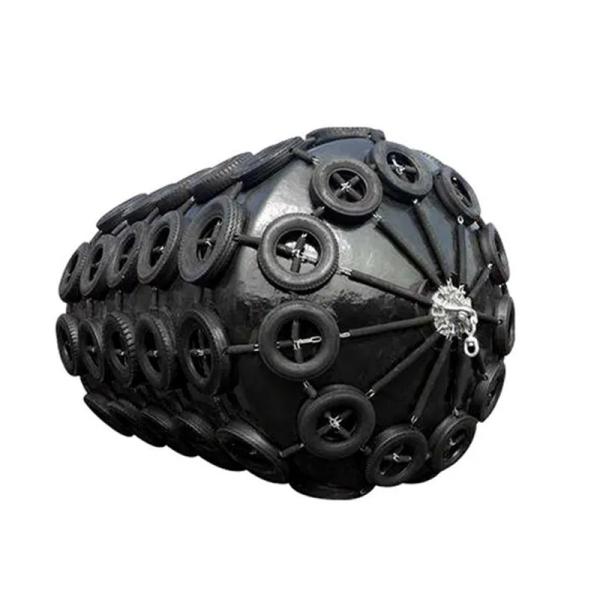

    50kpa Floating Yokohama Rubber Fender Pneumatic Tyre Chain Net

    50Kpa Floating Yokohama Rubber Fender Pneumatic For Sale


    Description


    A Yokohama Rubber Fender is a type of marine fender that is designed to absorb the kinetic energy of a vessel during berthing or mooring operations. It is made of multiple layers of rubber and nylon tire cord, which provide high energy absorption and low reaction force. The Yokohama Rubber Fender is commonly used in ports and harbors around the world to protect vessels and infrastructure from damage caused by collisions.


    Yokohama Rubber Fender is a type of marine fender that is made of high-quality rubber material and is designed to absorb the impact of a vessel during berthing or mooring operations. These fenders are widely used in ports, harbors, and offshore facilities to protect ships and other marine structures from damage. Yokohama Rubber Fenders are known for their durability, high energy absorption, and low reaction force, which makes them an ideal choice for various types of vessels, including large offshore platforms.


    50kpa Floating Yokohama Rubber Fender Pneumatic Tyre Chain Net


    Specifications


    Place of OriginChina
    Brand NameDockFender
    Model NumberDF-2.0*3.5M
    Product Name50Kpa Floating Yokohama Rubber Fender Pneumatic For Sale
    MaterialHigh Quality Natural Rubber
    StandardISO17357-1:2014, PIANC2014
    Density1.35~2.0 g/cm3
    Tensile Strength≥18
    Initial Pressure50kPa & 80kPa
    Testing Pressure200kPa & 250kPa
    TypeFloating
    ServiceOEM or ODM
    ApplicationUsed for protect the ship and dock

    Fender SizeInitial Pressure 50kPa
    Performance Data
    Initial Pressure 80kPa
    Performance Data

    Diameter x

    Length
    [mm]

    Reaction Force
    / kN
    Energy Absorption
    / kNm
    Hull Pressure
    at GEA
    / kN / m2
    Reaction Force
    / kN
    Energy Absorption
    / kNm
    Hull Pressure
    at GEA
    / kN / m2
    500 x 1,000664132885174
    600 x 1,0008741261198166
    700 x 1,5001713713524180177
    1,000 x 1,5001823212223945160
    1,000 x 2,0002574513233863174
    1,200 x 2,0002976312639088166
    1,350 x 2,500427102130561142170
    1,500 x 3,000579153153761214174
    1,700 x 3,000639191128840267168
    2,000 x 3,5008753081281,150430168
    2,500 x 4,0001,3816631371,815925180
    2,500 x 5,5002,0199431482,6531,317195
    3,300 x 4,5001,8841,1751302,4761,640171
    3,300 x 6,5003,0151,8141463,9612,532191
    3,300 x 10,6005,2573,0671586,9074,281208
    4,500 x 9,0005,7474,7521467,5516,633192
    * Other size can be produced follow client's requirements.


    Features

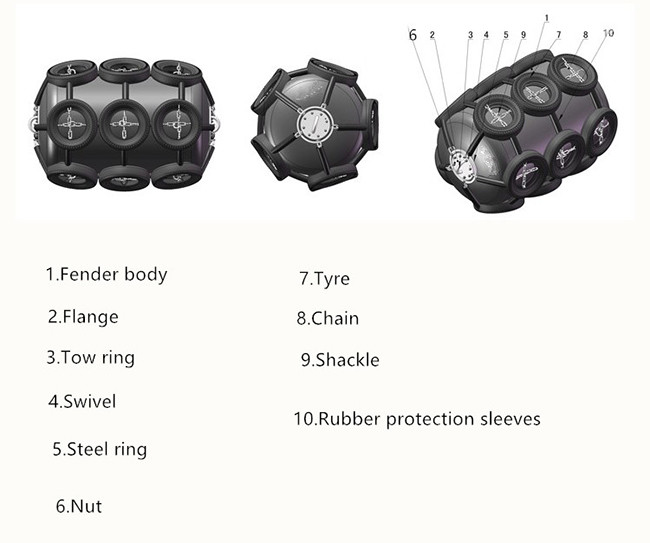

    Yokohama fenders, also known as pneumatic rubber fenders or airbags, are a type of marine fender used to protect ships and other vessels during berthing and mooring operations. They are made of an outer rubber layer and an inner airbag, which is inflated with compressed air.

    The main characteristics of Yokohama fenders include:


    1. High energy absorption: Yokohama fenders are designed to absorb large amounts of energy during impact, which helps to reduce the impact force on the vessel and prevent damage.


    2. Low reaction force: When a vessel comes into contact with a Yokohama fender, the fender exerts a relatively low reaction force, which helps to minimize the risk of damage to both the fender and the vessel.


    3. Easy to install and maintain: Yokohama fenders are relatively easy to install and maintain, which makes them a popular choice for many marine applications.


    4. Durable: Yokohama fenders are made of high-quality materials and are designed to withstand harsh marine environments, which helps to ensure their longevity and reliability.


    5. Versatile: Yokohama fenders are available in a wide range of sizes and can be used to protect a variety of vessels, including ships, barges, and offshore platforms.


    Applications


    Yokohama fenders are commonly used in marine and offshore applications to protect vessels from damage caused by impact with other vessels, docks, or structures. They are also used in the oil and gas industry to protect offshore platforms and pipelines from damage caused by ships or other marine vessels. Yokohama fenders are made of high-quality rubber and are designed to absorb energy and reduce impact forces, making them ideal for use in harsh marine environments. They come in various sizes and shapes to suit different applications.


    Advantages


    ◆ Fully compliant with ISO 17357-1:2014.

    ◆ Economical, low maintenance.

    ◆ Proportional increase of energy and reaction.

    ◆ Original factory, best price.

    ◆ With excellent oil resistance, heat resistance, anti-aging properties.
