    4.5*9m Inflatable Pneumatic Yokohama Rubber Fender Jumbo Extra Large

    Ask Lasest Price
    Brand Name : DockFender
    Model Number : DF-YRF4.5*9.0M
    Certification : ISO17357-1:2014, PIANC2002
    Price : $60-$800 / Unit
    Payment Terms : T/T, L/C, D/A, D/P, Western Union, MoneyGram
    Supply Ability : 2600 PCS Per Month
    Delivery Time : 6 Work Days
    • Product Details
    • Company Profile

    4.5*9m Inflatable Pneumatic Yokohama Rubber Fender Jumbo Extra Large

    4.5*9m Inflatable Yokohama Pneumatic Rubber Fenders Jumbo Extra Large Fender


    Description


    Fully compliant with ISO 17357 standard, manufacture with mold, difference with traditional hand-make product.
    Diameters ranging from 300 mm to 4500 mm and length ranging from 500 mm to 1200 mm
    Standard colors gray and black

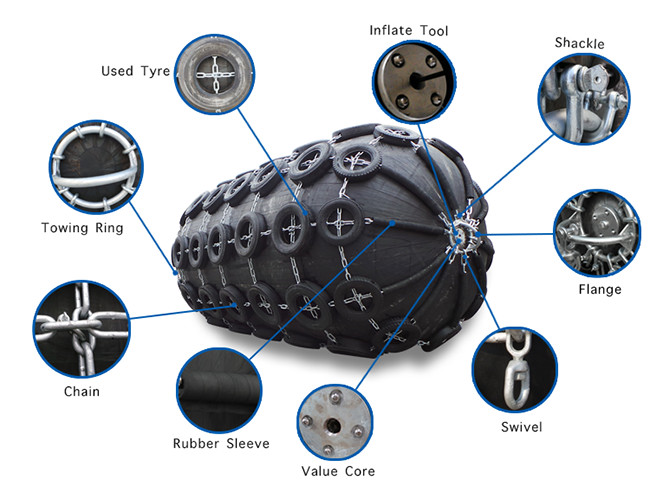

    Constructed with an inner rubber layer, reinforcing cord layers and outer rubber layer
    Comprehensively tested for material and hydrostatic pressure irregularities
    Correctly evaluated for angular and durability performance
    Clearly marked with all relevant identification
    Complete with up-to-date certification
    Available in a variety of sizes
    Thick outer skin supercedes that of a normal surface fender
    Fitted safety valve for fenders of 2.5 m diameter upwards


    Yokohama Rubber Fender
    1. Material: Natural rubber
    2. We use reinforced polymide fiber line.
    3. Anchor chain: High quality hot dip galvanizing,more resistant to seawater corrosion, extrusion resistance.
    4. Customized tyre intensive inflatable rubber fender,the lifespan will be longer.
    5. Guaranteed energy and reaction force is superior.
    6. All products comply with ISO standards.


    Specifications


    Place of OriginChina
    Brand NameDockFender
    Model NumberDF-YRF4.5*9.0M
    Product Name4.5*9m Inflatable Yokohama Pneumatic Rubber Fenders Jumbo Extra Large Fender
    ColorBlack/grey/blue, etc
    MaterialNatural Rubber
    Thickness37 Layers
    Size2.5*4.0M, or as required
    UsageSTS, Dock, Quay, Port, LNG, Oil Tanker
    SurfaceMatte/Smooth
    PackingPallet or Wooden Case
    KeywordsYokohama Fender / Yokohama Rubber Fender

    4.5*9m Inflatable Pneumatic Yokohama Rubber Fender Jumbo Extra Large


    Diameter x Length
    [mm]
    50kPa
    Performance Data
    80kPa
    Performance Data
    Hull Pressure
    at GEA
    / kN / m2
    Reaction Force
    / kN
    Energy Absorption
    / kNm
    Hull Pressure
    at GEA
    / kN / m2
    Reaction Force
    / kN
    Energy Absorption
    / kNm
    1000 x 15001221823216023945
    1000 x 20001322574517433863
    1200 x 20001262976316639088
    1350 x 2500130427102170561142
    1500 x 3000153579153174761214
    1700 x 3000128639191168840267
    2000 x 35001288753081681150430
    2500 x 400013713816631801815925
    2500 x 5500148201994319526531317
    3300 x 45001301884117517124761640
    3300 x 65001463015181419139612532
    3300 x 106001585257306720869074281
    4500 x 90001465747475219275516633
    * Other size can be produced follow client's requirements.

    Features


    1. The energy absorption does not decrease at inclined compression up to 15 degrees.

    2. The reaction force increases slowly and does not increase sharply even under excess load conditions.

    3. Adequately reinforced using strong tire cord against the combined force during ship berthing and mooring operations. Supported by water on which it floats, making simple installation possible on the wharf and anchor mast.

    Available in a variety of sizes.

    4. IACS Approvals: CCS, ABS, BV, LR, KR, DNV-GL, NK, RMRS and RINA.


    Applications


    ● Ship-to-ship transfer operations

    ● Ship-to-ship services

    ● Offshore platform defense

    ● Ship berthing at the dock

    ● Hang on the ship hull


    Advantages


    ◆ Fully compliant with ISO 17357-1:2014.

    ◆ Original factory, competitive price.

    ◆ Best discount to save project budget.

    ◆ Third party strict inspection + In-house performance test.

    ◆ With excellent oil resistance, heat resistance, anti-aging properties.
