    EVA Material Boat Floating Foam Fender With Chain Tyre Net STS STD Operation

    EVA Material Foam Filled Boat Fenders With Chain Tyre Net STS STD Operation


    Description


    Foam filled fender,also called EVA solid fender, is a new type fender using light weight high elasticity foam as cushion medium, widely applied to harbour, offshore,STS and STD operation. Henger Foam Filled Solid Fender is made of environmental protection material and high elasticity polymeric material. long service life and high economic value of this product is achieved by the high quality material with performance of high strength, high elasticity, high adhesion, anti-leakage,and aging resistance.

    Inside of Foam Filled Solid Fender is filled with environmental protection material-EVA with coating protective layer of polyurea material on outer surface. Polyurea is an new material of adjustable high-elasticity modulus. There are galvanized flange and swivel on the fender two ends. Like pneumatic rubber fender, tyre-chain net protective jacket is also optional spare part to foam filled fender for better anti-collision performance.


    Specifications


    Product NameEVA Material Foam Filled Boat Fenders With Chain Tyre Net STS STD Operation
    Brand NameDockFender
    Model NumberDF-1.0*1.5M
    MaterialPU Foam, Inner Pipe, Nylon Reinforcement, Polyurethane Skin
    StandardISO17357, ISO9001
    Hardness≤82 Shore A
    Processing ServiceMoulding
    PerformanceAgeing resistance, ozone resistance, oil resistance
    ColorAny color is OK
    Drawing FormatAvailable according to design in production
    PackageInner-Plastic Bag; Outer -Standard Pallets, wooden case or as your demand
    UsageMulti-Purpose-Terminals, RoRo ramps, Passenger Vessel Terminals, Barge
    ServiceWarm and quick response service provided by the professional Export Sales Team with many years' experience in handling exports to the US, Europe, Australia and other countries.

    EVA Material Boat Floating Foam Fender With Chain Tyre Net STS STD Operation


    EVA Material Boat Floating Foam Fender With Chain Tyre Net STS STD Operation

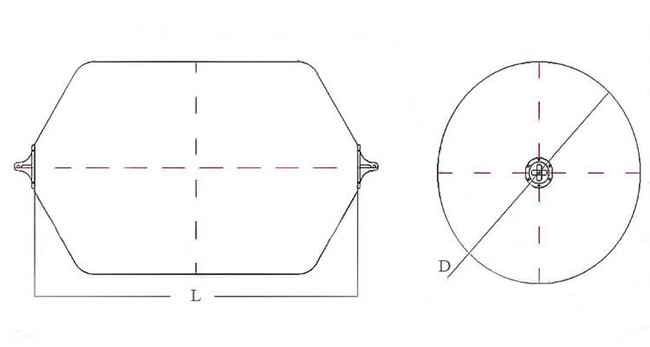

    Diameter x LengthEnergy absorption at 60% compReaction force at 60% compApprox. weight
    (mm)(kNm)(kN)(kg)
    300 x 10003.85411
    500 x 100010.69141
    600 x 100015.310949
    600 x 100018.313155
    700 x 15003119185
    750 x 15003620489
    900 x 180062294140
    1000 x 150064272125
    1000 x 200085363170
    1200 x 2000122436275
    1200 x 2400146523365
    1250 x 2000132454353
    1250 x 2500165567410
    1500 x 3000286817570
    1500 x 40003811089720
    1700 x 3000367926700
    1700 x 35004281080780
    1800 x 3000412980850
    1800 x 36004941176965
    2000 x 30005081089965
    2000 x 350059312711100
    2000 x 400067814521220
    2400 x 400097617431720
    2400 x 4800117120912140
    2500 x 4000105918151865
    2500 x 5000132422692500
    2500 x 5500145624962675
    2700 x 5400166826472865
    3000 x 5000192527503200
    3000 x 6000228732683740
    3300 x 6500299838944735
    3600 x 7200395347065800
    4000 x 8000452258098700
    4200 x 84006277640510000
    4500 x 90007720735310700

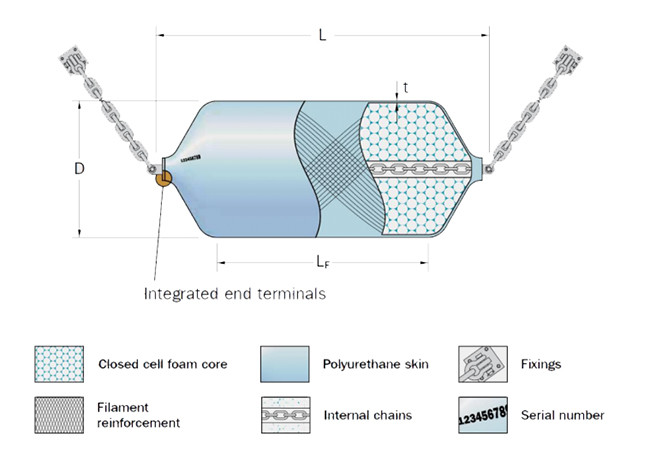

    Structure


    Foam Core - The closed cell EVA foam core used inside offers unsink ability during operation.


    Outer Rubber + Nylon Cord Fabrics - Specifically designed to seal EVA foam inside and to prevent any leakage.


    Polyurea Spraying Coating - Permanent spray on coatings that protect the surface of fender body. It is more durable than rubber and flexible in all weather conditions; no softening in heat or becoming brittle in cold.


    Features


    1. First class quality – closed cells with no absorption.

    2. From 30 kg/m3 to 140 kg/m3 density.

    3. Non marking.

    4. Chain & tire net optional.


    Applications


    ● Cruise ships

    ● Container vessels

    ● Bulk cargo

    ● RoRo and ferries

    ● Oil and gas tankers

    ● General cargo

    ● Navy berths

    ● Ship-to-ship transfers


    Advantages


    1. Quality: DockFender foam fenders always maintain high quality. We insist on using 100% closed cell foam, coupled with a special angle design, so that our floating foam fender can be more durable and perform better.


    2. Service: DockFender adheres to the principle of customer first. Our professional customer service team can not only provide you with the most professional product recommendations, but also help you customize project solutions.


    3. After-sales Service: DockFender 's solid arch fenders can be guaranteed for 24 months. As long as you use it normally, we can guarantee replacement for any product quality problems during the warranty period.


    4. Customize: All products of DockFender can be specially customized according to customer requirements, let us know your needs!
