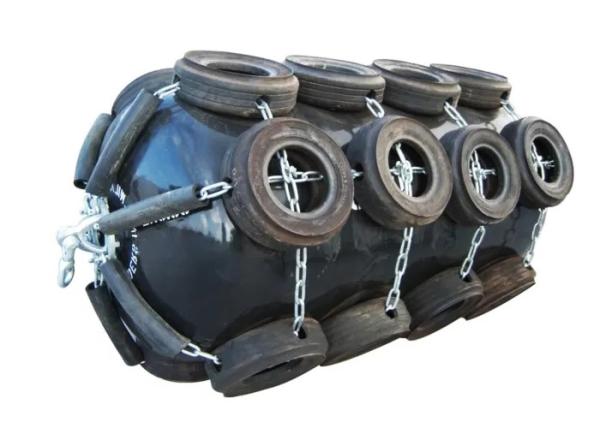

    Ship Protective Boat DNV Foam Fenders Marine For Dock Port Wharf

    Ask Lasest Price
    Brand Name : DockFender
    Model Number : DF-700*1500mm
    Certification : CCS, DNV, ABS, LRS, ISO90001:2000
    Price : USD 220 One Piece
    Payment Terms : T/T, L/C, D/A, D/P, Western Union, MoneyGram
    Supply Ability : 5900 Pcs Per Month
    Delivery Time : 6 Work Days
    MOQ : 1
    • Product Details
    • Company Profile

    Ship Protective Boat DNV Foam Fenders Marine For Dock Port Wharf

    Ship Protective Boat Foam Boat Fenders Marine Dock Fenders For Dock Port Wharf


    Description


    The EVA foam filled fender uses polyurethane elastomer and as the buffer medium, which makes the ship have better anti-collision effect when it is near the ship or dock.

    Polyurethane elastomer is a new kind synthetic polymer whose performance has both advantages of plastic and rubber. The high strength of plastic and good elasticity of rubber.


    Advantages of Polyurethane Elastomer


    ● High wear resistance which is 3-5times of nature rubber.
    ● Excellent oil resistance which is 4times of NBR.
    ● High mechanical strength.Its tensile intention and tear strength and burden capability are several times of common rubbers.
    ● Excellent tolerance of acid, alkali, low temperance and organic solvent.
    ● High metal-bonding performance.
    ● Wide hardness range from Shore A100 adjustable.


    Characteristic


    ► Having the capability of floating, not easily influenced by the ebb and flow of the tide.
    ► Bright colors. Various colors can be offered according to the customers demands.
    ► Compared with inflatable fender, it boasts the characteristics if safety and maintenance’ free with working life as long as 15 to 30 years, wanting no inflating, resistant to scarification, pricking, friction, seawater, acid and alkali.
    ► Solid but light,easy to install and move.
    ► When compressed to 60%, it’s reaction force grows obviously from little to largeness, and energy absorption is very high.


    Advantage


    ● Good Hydrophobicity.
    ● High Performance of Outer Coating Layer.
    ● Fast and Easy Installation.
    ● Multiple Color Options.
    ● Multiple Form & Size Options.
    ● High energy absorption capability and lower reaction force.


    Specifications


    Ship Protective Boat DNV Foam Fenders Marine For Dock Port Wharf


    Diameter x LengthEnergy absorption at 60% compReaction force at 60% compApprox. weight
    (mm)(kNm)(kN)(kg)
    300 x 10003.85411
    500 x 100010.69141
    600 x 100015.310949
    600 x 100018.313155
    700 x 15003119185
    750 x 15003620489
    900 x 180062294140
    1000 x 150064272125
    1000 x 200085363170
    1200 x 2000122436275
    1200 x 2400146523365
    1250 x 2000132454353
    1250 x 2500165567410
    1500 x 3000286817570
    1500 x 40003811089720
    1700 x 3000367926700
    1700 x 35004281080780
    1800 x 3000412980850
    1800 x 36004941176965
    2000 x 30005081089965
    2000 x 350059312711100
    2000 x 400067814521220
    2400 x 400097617431720
    2400 x 4800117120912140
    2500 x 4000105918151865
    2500 x 5000132422692500
    2500 x 5500145624962675
    2700 x 5400166826472865
    3000 x 5000192527503200
    3000 x 6000228732683740
    3300 x 6500299838944735
    3600 x 7200395347065800
    4000 x 8000452258098700
    4200 x 84006277640510000
    4500 x 90007720735310700

    Applications


    ● Oil & Gas Terminals

    ● Ship-to-ship operations

    ● Ship-to-shore operations

    ● Navy vessel berths and cruise terminals


    Structure


    Foam Core - The closed cell EVA foam core used inside offers unsink ability during operation.


    Outer Rubber + Nylon Cord Fabrics - Specifically designed to seal EVA foam inside and to prevent any leakage.


    Polyurea Spraying Coating - Permanent spray on coatings that protect the surface of fender body. It is more durable than rubber and flexible in all weather conditions; no softening in heat or becoming brittle in cold.
