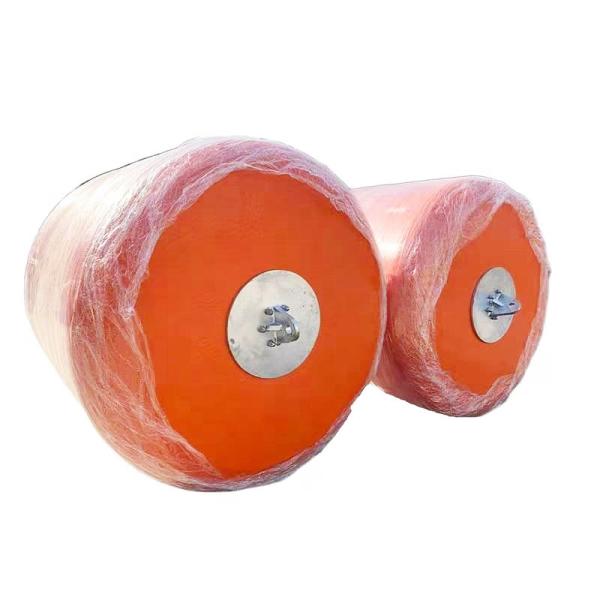

    3.3m*6.5m Floating Foam Fender Marine Iso 9001 Standard Hdg Flange

    Ask Lasest Price
    Brand Name : DockFender
    Model Number : DF-3.3m*6.5m
    Certification : PIANC, ABS, DNV
    Price : $90-$220
    Payment Terms : T/T, L/C, D/A, D/P, Western Union, MoneyGram
    Supply Ability : 8860 Pcs Per Month
    Delivery Time : 5 Work Days
    • Product Details
    • Company Profile

    3.3m*6.5m Floating Foam Fender Marine Iso 9001 Standard Hdg Flange

    3.3m*6.5m Marine Floating Foam Filled Fenders ISO9001 Standard HDG Flange


    Description


    The foam fender is designed based on a thermal laminated 100% closed-cell foam core and tough nylon filament-reinforced polyurethane epidermis and embedded end fittings.

    The foam core eliminates the need for air in the floating fender, creating a solid object. The polyurethane housing ensures that these floating fenders are unmarked. This makes them the first choice for naval vessels and cruise berths.

    The unique structure of these foam fenders ensures performance regardless of damage. No matter how severe the impact, these fenders will not break or sink. This results in a highly reliable floating fender with a long service life. As a standard, we can manufacture floating fenders of all sizes. This allows you to select the right size fender to provide the energy absorption your application needs.


    Structure


    Foam Core - The closed cell EVA foam core used inside offers unsink ability during operation.


    Outer Rubber + Nylon Cord Fabrics - Specifically designed to seal EVA foam inside and to prevent any leakage.


    Polyurea Spraying Coating - Permanent spray on coatings that protect the surface of fender body. It is more durable than rubber and flexible in all weather conditions; no softening in heat or becoming brittle in cold.


    Specifications


    Place of OriginChina
    Brand NameDockFender
    Model NumberDF-2.5*4.0M
    Product Name2.5*4.0M Floating Foam Fender Closed Cell Foam Eco Friendly Safety Elasticity
    MaterialPU Foam, Inner Pipe, Nylon Reinforcement, Polyurethane Skin
    StandardHGT 2866-2016, PIANC 2002
    Density54-70kg/m³
    Tensile Strength≥414 kN/m³
    Diameter500mm-4500mm
    Length1000mm-9000mm
    ShapeCylindrical
    ServiceOEM or ODM
    ApplicationUsed for protect the ship and dock

    3.3m*6.5m Floating Foam Fender Marine Iso 9001 Standard Hdg Flange


    Diameter x LengthEnergy absorption at 60% compReaction force at 60% compApprox. weight
    (mm)(kNm)(kN)(kg)
    300 x 10003.85411
    500 x 100010.69141
    600 x 100015.310949
    600 x 100018.313155
    700 x 15003119185
    750 x 15003620489
    900 x 180062294140
    1000 x 150064272125
    1000 x 200085363170
    1200 x 2000122436275
    1200 x 2400146523365
    1250 x 2000132454353
    1250 x 2500165567410
    1500 x 3000286817570
    1500 x 40003811089720
    1700 x 3000367926700
    1700 x 35004281080780
    1800 x 3000412980850
    1800 x 36004941176965
    2000 x 30005081089965
    2000 x 350059312711100
    2000 x 400067814521220
    2400 x 400097617431720
    2400 x 4800117120912140
    2500 x 4000105918151865
    2500 x 5000132422692500
    2500 x 5500145624962675
    2700 x 5400166826472865
    3000 x 5000192527503200
    3000 x 6000228732683740
    3300 x 6500299838944735
    3600 x 7200395347065800
    4000 x 8000452258098700
    4200 x 84006277640510000
    4500 x 90007720735310700


    Features


    1. Unlimited sizes due to variable production
    2. High energy absorption, variable through foam modification
    3. Attachment to chains, bars or rope systems
    4. Unsinkable due to the use of closed cell foam types
    5. Non-discolouring PUR outer skin
    6. Individual colours available, also navy-grey
    7. Chain/tyre net for heavy duty applications


    Applications


    - Bulk cargo
    - RoRo and ferries
    - General cargo
    - Shipyard
    - Cruise ships
    - Navy ships
    - Oil and gas tankers
    - Container vessels
    - Ship to ship


    Advantages


    1. Quality: DockFender foam fenders always maintain high quality. We insist on using 100% closed cell foam, coupled with a special angle design, so that our floating foam fender can be more durable and perform better.


    2. Service: DockFender adheres to the principle of customer first. Our professional customer service team can not only provide you with the most professional product recommendations, but also help you customize project solutions.


    3. After-sales Service: DockFender 's solid arch fenders can be guaranteed for 24 months. As long as you use it normally, we can guarantee replacement for any product quality problems during the warranty period.


    4. Customize: All products of DockFender can be specially customized according to customer requirements, let us know your needs!
