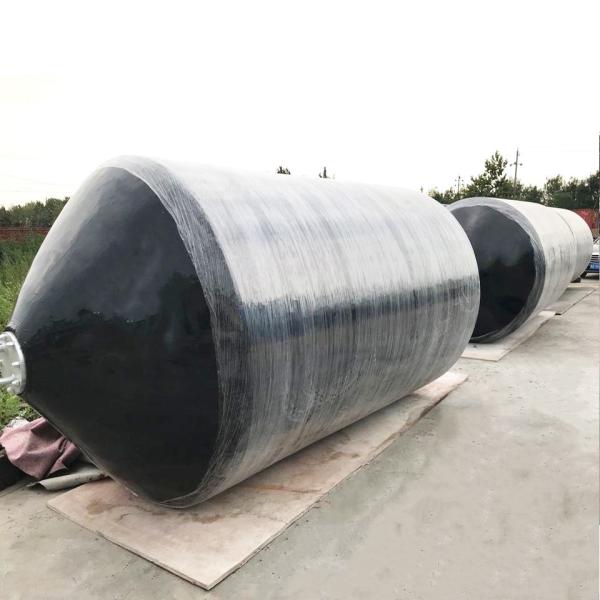

    Marine Cushion Floating Foam Fender Ship Docking Protection Colorful Polyurethane

    Ask Lasest Price
    Brand Name : DockFender
    Model Number : DF-2000mm*3500mm
    Certification : BV, ABS, SGS
    Price : $40-$110
    Payment Terms : T/T, L/C, D/A, D/P, Western Union, MoneyGram
    Supply Ability : 8900 Pcs Per Month
    Delivery Time : 5 Work Days
    • Product Details
    • Company Profile

    Marine Cushion Floating Foam Fender Ship Docking Protection Colorful Polyurethane

    Marine Cushion Foam Filled Fender for Ship Docking Protection Colorful Polyurethane Fender


    Description


    Floating Foam Filled Fenders’ parameters are available in diameters from 300 mm to 4,500 mm and lengths from 800 mm to 10,600 mm, Depends on the different used and applications,the fenders could be installed with a two or four point mounting system. Standard colors of foam filled fenders are black and orange, if any special requests from our customers we are willing to offer personal options for colors.

    Our floating foam fenders also have a simple yet unique internal structure, which allows the shear loads to be absorbed by a through-chain arrangement terminating in end-shackles rather than the body of the fender itself. This has been engineered so that in the event of overload, any damaged components of this system can be replaced in isolation – as opposed to other foam fenders where the end-fittings form an integral part of the internal workings of the fender and which, if damaged by shear, can lead to the fender being written off.
    Foam fenders are constructed of three parts providing an important function in the construction. The outside closed-cell polyethylene foam core absorbs the impact from severe operating conditions, while the inside skin of reinforced polyuretane elastomer resists wear and tear among austere condition.


    Specifications


    Item No.DF-2000mm*3500mm
    Product NameMarine Cushion Foam Filled Fender for Ship Docking Protection Colorful Polyurethane Fender
    MaterialEVA Closed Cell Foam, Inner Pipe, Nylon Reinforcement, Polyurethane Skin
    TemperatureFrom -30°C To 100°C
    Tensile Strength≥ 414 kN/m³
    Density54-70 kg/m³
    Hardness65 ± 5 shore A
    Elongation≥ 350%
    SizeDiameter: 300-4500mm; Length: 1000-9000mm
    PackageBy Pallets, By carton, By iron cage
    ColorBlack, As Required
    CertificateCE, ROHS, REACH, SGS, MSDS, ISO9001
    Experience32 years
    MarketNorth America, Asia, Europe, South America, Australia, Africa.
    PaymentBANK TRANSFER, 30% T/T, Balance Before Shipment, L/C.

    Marine Cushion Floating Foam Fender Ship Docking Protection Colorful Polyurethane


    Diameter x LengthEnergy absorption at 60% compReaction force at 60% compApprox. weight
    (mm)(kNm)(kN)(kg)
    300 x 10003.85411
    500 x 100010.69141
    600 x 100015.310949
    600 x 100018.313155
    700 x 15003119185
    750 x 15003620489
    900 x 180062294140
    1000 x 150064272125
    1000 x 200085363170
    1200 x 2000122436275
    1200 x 2400146523365
    1250 x 2000132454353
    1250 x 2500165567410
    1500 x 3000286817570
    1500 x 40003811089720
    1700 x 3000367926700
    1700 x 35004281080780
    1800 x 3000412980850
    1800 x 36004941176965
    2000 x 30005081089965
    2000 x 350059312711100
    2000 x 400067814521220
    2400 x 400097617431720
    2400 x 4800117120912140
    2500 x 4000105918151865
    2500 x 5000132422692500
    2500 x 5500145624962675
    2700 x 5400166826472865
    3000 x 5000192527503200
    3000 x 6000228732683740
    3300 x 6500299838944735
    3600 x 7200395347065800
    4000 x 8000452258098700
    4200 x 84006277640510000
    4500 x 90007720735310700


    Features


    1. Unsinkable design & extremely robust.

    2. Wide range of standard and custom sizes.

    3. Proportional increase of energy and reaction.

    4. Foam grades from Standard to Ultra High-Capacity options.

    5. No performance loss and unsinkable even if damaged.

    6. Smaller skin damages can easily be repaired on site.

    7. Low hull pressure and non-marking Polyurethane skin.

    8. Operate floating or suspended.

    9. Rapid response and emergencies.


    Applications


    Navy vessel berths and cruise terminals

    Ship-to-ship operations

    Ship-to-shore operations

    Oil & Gas Terminals

    Cruise ships & workboat

    Container vessels

    Bulk cargo

    RoRo and ferries


    Structure


    Foam Core - The closed cell EVA foam core used inside offers unsink ability during operation.


    Outer Rubber + Nylon Cord Fabrics - Specifically designed to seal EVA foam inside and to prevent any leakage.


    Polyurea Spraying Coating - Permanent spray on coatings that protect the surface of fender body. It is more durable than rubber and flexible in all weather conditions; no softening in heat or becoming brittle in cold.
