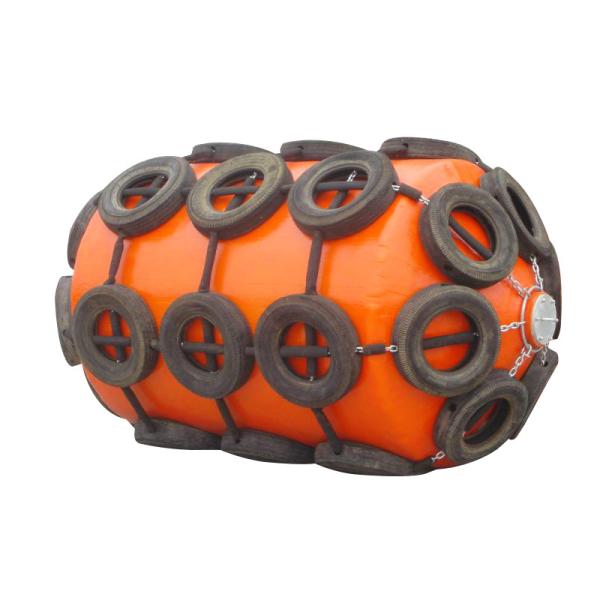

    Polyurethane Cover Iso Standard Foam Fenders For Boats

    Ask Lasest Price
    Brand Name : DockFender
    Model Number : DF-1000mm*1500mm
    Certification : BV, DNV, SGS
    Price : $50-$160
    Payment Terms : T/T, L/C, D/A, D/P, Western Union, MoneyGram
    Supply Ability : 5500 Pcs Per Month
    Delivery Time : 9 Work Days
    • Product Details
    • Company Profile

    Polyurethane Cover Iso Standard Foam Fenders For Boats

    Low Price High Quality Floating Foam Fender Polyurethane Cover ISO Standard


    Description


    Floating foam filled fenders are also very often used in ship-to-ship and ship-to-quay berthing operations. They are used as alternatives to the normal pneumatic fenders. These fender are made of polyurethane elastomer skin ( or rubber skin), nylon reinforcement layer and closed-cell resilient foam. The performance of foam elastomer fenders is comparable to that of a pneumatic fender, but the fenders will not lose their function in case the skin gets punctured, and they have a high degree of wear resistance.

    Floating Foam Fender is also a kind of compressed fender which builds outer protective layer with polyurethane materials and adopts polyurethane foaming material or plastic foaming as buffer medium. The destructive effects on docks and ships will be reduced by the compression to absorb the impact energy from ships in the course of using polyurethane floating fender.

    Floating Foam Fender absorbs the impacts whilst the skin resists wear and tear in any tough conditions, thus providing tough, heavy-duty marine fender systems for harbors, offshore and ship-to-ship applications.


    Specifications


    Polyurethane Cover Iso Standard Foam Fenders For Boats


    Diameter x LengthEnergy absorption at 60% compReaction force at 60% compApprox. weight
    (mm)(kNm)(kN)(kg)
    300 x 10003.85411
    500 x 100010.69141
    600 x 100015.310949
    600 x 100018.313155
    700 x 15003119185
    750 x 15003620489
    900 x 180062294140
    1000 x 150064272125
    1000 x 200085363170
    1200 x 2000122436275
    1200 x 2400146523365
    1250 x 2000132454353
    1250 x 2500165567410
    1500 x 3000286817570
    1500 x 40003811089720
    1700 x 3000367926700
    1700 x 35004281080780
    1800 x 3000412980850
    1800 x 36004941176965
    2000 x 30005081089965
    2000 x 350059312711100
    2000 x 400067814521220
    2400 x 400097617431720
    2400 x 4800117120912140
    2500 x 4000105918151865
    2500 x 5000132422692500
    2500 x 5500145624962675
    2700 x 5400166826472865
    3000 x 5000192527503200
    3000 x 6000228732683740
    3300 x 6500299838944735
    3600 x 7200395347065800
    4000 x 8000452258098700
    4200 x 84006277640510000
    4500 x 90007720735310700

    Structure


    Foam Core - The closed cell EVA foam core used inside offers unsink ability during operation.


    Outer Rubber + Nylon Cord Fabrics - Specifically designed to seal EVA foam inside and to prevent any leakage.


    Polyurea Spraying Coating - Permanent spray on coatings that protect the surface of fender body. It is more durable than rubber and flexible in all weather conditions; no softening in heat or becoming brittle in cold.


    Features


    1. Low Hull Pressure

    2. Can be manufactured in special sizes for a specific purpose

    3. Performance can be altered by changing the grade of foam

    4. Available in non-staining colours

    5. Quite easy to install, dismantle and re-locate

    6. Low maintenance

    7. Robust and Unsinkable design


    Applications


    ● Navy vessel berths and cruise terminals

    ● Offshore boat landings

    ● Ship-to-shore operations

    ● LNG and oil terminals

    ● Shipyards


    Advantages


    ◆ Virtually unsinkable and will keep functioning – even if damaged beyond viable repair.

    ◆ Whatever else happens, fender will not deflate, burst or sink.

    ◆ Especially tough skin and chain tyre net make it the strongest floating fender.

    ◆ Extremely durable, it has lower friction and lower specific gravity.

    ◆ Strong floating performance, lower weight, excellent energy absorption, flexible install location without being influenced by tidal range.


    Polyurethane Cover Iso Standard Foam Fenders For Boats


    Polyurethane Cover Iso Standard Foam Fenders For BoatsPolyurethane Cover Iso Standard Foam Fenders For Boats
