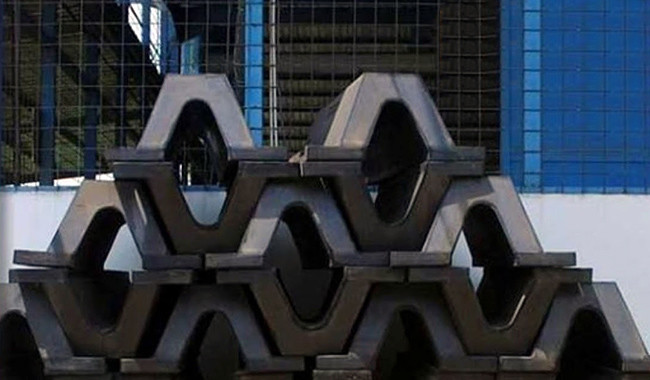

High Quality Marine Applications Arch Rubber Fender with V Shape Profile for Boat Protection
Description
V type rubber fender is a type of rubber fender commonly used in marine applications. It is designed to provide protection to ships, docks, and other structures from impacts caused by vessels during docking or mooring operations.
The V shape of the fender helps to distribute the impact force
evenly, reducing the stress on the fender and the structure it is
protecting. This design also allows for easy installation and
replacement, making it a cost-effective solution for port
facilities. Made from high-quality rubber materials, the V type
rubber fender exhibits excellent resistance to abrasion,
weathering, and aging. It can withstand harsh marine environments
and maintain its performance over a long period of time.
The fender is available in various sizes and can be customized to
meet specific requirements. It is also designed to be easily
installed on different types of structures, including concrete
walls, timber piles, and steel structures. With its superior
performance, durability, and versatility, the V type rubber fender
is an essential component for ensuring the safety and protection of
ships and marine structures in ports and harbors.
Specifications
Brand Name | Hongruntong Marine |
Model Number | HM-V2000L |
Processing Service | Moulding, Cutting |
Keywords | Arch Rubber Fender |
Color | Black, Grey, White, or as request |
Material | Long-Lasting Natural Rubber |
Tensile Strength | ≥8 Mpa |
Elongation | ≥300% |
Hardness | 70±5 Shore A |
Height | 200mm-1000mm |
Length | 1000mm-3500mm |
Accessory | Front Panel, Face Panel, Bolt, Nut, etc |
Package | Polybag, Pallet, Wooden Case |
Warranty | 3 Years |
Usage | Dock Boat Protection |
Model | Specifications (mm) | ||||||||||||||
H | L | L1 | C | Q | n | B | B1 | B2 | B3 | h | a | b | e | f | |
DF-V150 x 1000L | 150 | 1000 | 1075 | 110 | 855 | 2 | 98 | 240 | 300 | 96 | 25 | 50 | 95 | 25 | 55 |
DF-V150 x 2000L | 150 | 2000 | 2075 | 107.5 | 620 | 4 | 98 | 240 | 300 | 96 | 25 | 50 | 95 | 25 | 55 |
DF-V150 x 3000L | 150 | 3000 | 3075 | 107.5 | 715 | 5 | 98 | 240 | 300 | 96 | 25 | 50 | 95 | 25 | 55 |
DF-V200 x 1000L | 200 | 1000 | 1100 | 120 | 860 | 1 | 135 | 320 | 400 | 128 | 30 | 58 | 105 | 29 | 75 |
DF-V200 x 2000L | 200 | 2000 | 2100 | 120 | 620 | 3 | 135 | 320 | 400 | 128 | 30 | 58 | 105 | 29 | 75 |
DF-V200 x 3000L | 200 | 3000 | 3100 | 120 | 715 | 4 | 135 | 320 | 400 | 128 | 30 | 58 | 105 | 29 | 75 |
DF-V250 x 1000L | 250 | 1000 | 1125 | 130 | 865 | 1 | 164 | 410 | 500 | 160 | 33 | 64 | 125 | 32 | 90 |
DF-V250 x 2000L | 250 | 2000 | 2125 | 132.5 | 620 | 3 | 164 | 410 | 500 | 160 | 33 | 64 | 125 | 32 | 90 |
DF-V250 x 3000L | 250 | 3000 | 3125 | 132.5 | 715 | 4 | 164 | 410 | 500 | 160 | 33 | 64 | 125 | 32 | 90 |
DF-V300 x 1000L | 300 | 1000 | 1150 | 140 | 870 | 1 | 225 | 490 | 600 | 195 | 33 | 70 | 140 | 35 | 105 |
DF-V300 x 2000L | 300 | 2000 | 2150 | 137.5 | 625 | 3 | 225 | 490 | 600 | 195 | 33 | 70 | 140 | 35 | 105 |
DF-V300 x 3000L | 300 | 3000 | 3150 | 145 | 715 | 4 | 225 | 490 | 600 | 195 | 33 | 70 | 140 | 35 | 105 |
DF-V400 x 1000L | 400 | 1000 | 1200 | 150 | 900 | 1 | 300 | 670 | 800 | 260 | 40 | 82 | 165 | 41 | 120 |
DF-V400 x 2000L | 400 | 2000 | 2200 | 147.5 | 635 | 3 | 300 | 670 | 800 | 260 | 40 | 82 | 165 | 41 | 120 |
DF-V400 x 3000L | 400 | 3000 | 3200 | 150 | 725 | 4 | 300 | 670 | 800 | 260 | 40 | 82 | 165 | 41 | 120 |
DF-V500 x 1000L | 500 | 1000 | 1250 | 160 | 930 | 1 | 375 | 840 | 1000 | 325 | 45 | 94 | 180 | 47 | 140 |
DF-V500 x 2000L | 500 | 2000 | 2250 | 157.5 | 645 | 3 | 375 | 840 | 1000 | 325 | 45 | 94 | 180 | 47 | 140 |
DF-V500 x 3000L | 500 | 3000 | 3250 | 156 | 730 | 4 | 375 | 840 | 1000 | 325 | 45 | 94 | 180 | 47 | 140 |
DF-V600 x 1000L | 600 | 1000 | 1300 | 170 | 960 | 1 | 450 | 1010 | 1200 | 390 | 54 | 100 | 195 | 50 | 160 |
DF-V600 x 2000L | 600 | 2000 | 2300 | 167.5 | 655 | 3 | 450 | 1010 | 1200 | 390 | 54 | 100 | 195 | 50 | 160 |
DF-V600 x 3000L | 600 | 3000 | 3300 | 170 | 740 | 4 | 450 | 1010 | 1200 | 390 | 54 | 100 | 195 | 50 | 160 |
DF-V800 x 1000L | 800 | 1000 | 1400 | 180 | 1040 | 1 | 600 | 1340 | 1600 | 520 | 72 | 136 | 270 | 68 | 260 |
DF-V800 x 2000L | 800 | 2000 | 2400 | 180 | 680 | 3 | 600 | 1340 | 1600 | 520 | 72 | 136 | 270 | 68 | 260 |
DF-V800 x 3000L | 800 | 3000 | 3400 | 180 | 760 | 4 | 600 | 1340 | 1600 | 520 | 72 | 136 | 270 | 68 | 260 |
DF-V1000 x 1500L | 1000 | 1500 | 2000 | 200 | 800 | 2 | 750 | 1680 | 2000 | 650 | 90 | 136 | 290 | 68 | 300 |
Features
High Energy Absorption
V type fenders are designed to high amounts of energy during vessel
berthing or docking processes. The V shape helps to distribute the
impact force evenly, reducing the risk of damage to both the fender
and the vessel.
Versatility
V type fenders can be used in a variety of applications, including
port terminals, docks, marinas, and offshore structures. They are
suitable for both small and large vessels, making them a versatile
option for different types of berthing requirements.
Easy Installation and Maintenance
V type fenders are relatively easy to install and maintain. They
can be easily attached to various structures, such as marine piles
or docks, using bolts or other fastening mechanisms. Periodic
inspection and cleaning are usually sufficient to keep them in good
working condition.
Long Service Life
V type fenders are typically made from high-quality rubber
compounds that are resistant to abrasion, weathering, and UV rays.
This ensures their durability and extends their service life,
reducing the need for frequent replacements.
Cost-Effective
V type fenders offer a cost-effective solution for vessel
protection compared to other fender types. Their high energy
absorption capacity helps minimize the potential for damage,
reducing repair and maintenance costs in the long run.
Additionally, their durability ensures a longer lifespan, resulting
in lower replacement costs over time.
Applications
● Ports and harbors
● Offshore platforms
● Shipyards
● Breakwaters
● Bridge piers
● Quay walls
● Ro-Ro ramps
● Docks and wharves
● Marine terminals
● Jetties and piers
Advantages
Superior Quality
Our factory prides itself on producing V type rubber fenders of the
highest quality. We ensure that every product meets rigorous
industry standards and undergoes thorough quality control checks
before leaving our facility.
Customization Options
We understand that each customer may have unique requirements.
That's why we offer a wide range of customization options for our V
type rubber fenders. From size and shape to color and hardness, we
can tailor our products to meet specific needs and preferences.
Durability and Longevity
Our V type rubber fenders are built to withstand the harshest
conditions. We use premium-grade materials and employ advanced
manufacturing techniques to create fenders that are highly durable
and long-lasting. This ensures that our customers can rely on our
products to provide effective protection for extended periods of
time.
Expertise and Experience
With years of experience in the industry, our factory has developed
a deep understanding of the requirements and challenges associated
with V type rubber fender production. Our team of experts possesses
the knowledge and expertise necessary to deliver superior products
and provide professional guidance and support to our customers.
![]() |
