Brand Name : | Hongruntong Marine |
Model Number : | HM-V1000H |
Certification : | ABS,BV, LR, DNV, SGS, CCS, RMRS |
Price : | USD180 to USD600 Per Piece |
Payment Terms : | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
Supply Ability : | 1690 Pieces Per Month |
Delivery Time : | 3-6 Work Days |

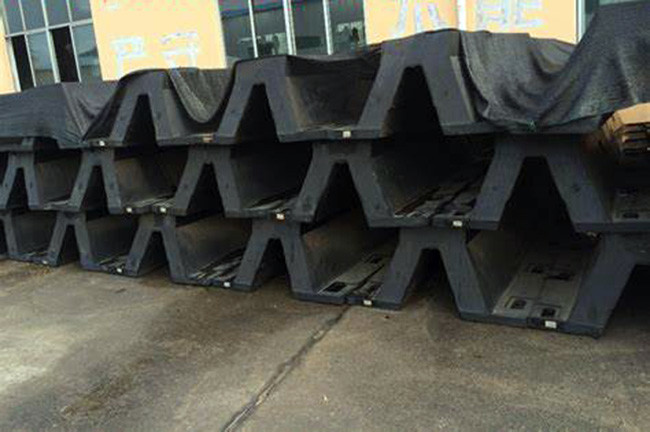

Marine Model Marine Rubber Fenders V-Shaped Rubber Fenders for Ships and Boats
Description
V-type rubber fenders are highly effective and versatile marine protection devices. These fenders are specifically designed to bear the impact of berthing vessels, minimizing damage to both the vessel and the dock.
Constructed from high-quality rubber materials, V-type rubber
fenders offer excellent elasticity, durability, and resistance to
extreme weather conditions. Their unique V-shaped design allows for
efficient energy absorption and dispersion, ensuring maximum
protection during vessel docking and mooring operations.
These fenders are easy to install and maintain, making them a
popular choice in various marine applications such as ports, docks,
and shipyards. They can be customized to suit different
requirements, including size, shape, and rubber hardness, to
provide optimal performance based on specific berthing conditions.
V-type rubber fenders have proven to be reliable and cost-effective
solutions, offering superior protection to both vessels and
infrastructure. With their outstanding impact resistance and
long-lasting properties, these fenders provide essential safety
measures for marine operations, contributing to the overall
sustainability and efficiency of maritime activities.
Specifications
Brand Name | Hongruntong Marine |
Model Number | HM-V300H |
Processing Service | Moulding, Cutting |
Keywords | Arch Rubber Fender |
Color | Black, Grey, White, or as request |
Material | Premium Quality Natural Rubber |
Tensile Strength | ≥8 Mpa |
Elongation | ≥300% |
Hardness | 70±5 Shore A |
Height | 200mm-1000mm |
Length | 1000mm-3500mm |
Accessory | Front Panel, Face Panel, Bolt, Nut, etc |
Package | Polybag, Pallet, Wooden Case |
Warranty | 3 Years |
Usage | Dock Boat Protection |
Model | Specifications (mm) | ||||||||||||||
H | L | L1 | C | Q | n | B | B1 | B2 | B3 | h | a | b | e | f | |
DF-V150 x 1000L | 150 | 1000 | 1075 | 110 | 855 | 2 | 98 | 240 | 300 | 96 | 25 | 50 | 95 | 25 | 55 |
DF-V150 x 2000L | 150 | 2000 | 2075 | 107.5 | 620 | 4 | 98 | 240 | 300 | 96 | 25 | 50 | 95 | 25 | 55 |
DF-V150 x 3000L | 150 | 3000 | 3075 | 107.5 | 715 | 5 | 98 | 240 | 300 | 96 | 25 | 50 | 95 | 25 | 55 |
DF-V200 x 1000L | 200 | 1000 | 1100 | 120 | 860 | 1 | 135 | 320 | 400 | 128 | 30 | 58 | 105 | 29 | 75 |
DF-V200 x 2000L | 200 | 2000 | 2100 | 120 | 620 | 3 | 135 | 320 | 400 | 128 | 30 | 58 | 105 | 29 | 75 |
DF-V200 x 3000L | 200 | 3000 | 3100 | 120 | 715 | 4 | 135 | 320 | 400 | 128 | 30 | 58 | 105 | 29 | 75 |
DF-V250 x 1000L | 250 | 1000 | 1125 | 130 | 865 | 1 | 164 | 410 | 500 | 160 | 33 | 64 | 125 | 32 | 90 |
DF-V250 x 2000L | 250 | 2000 | 2125 | 132.5 | 620 | 3 | 164 | 410 | 500 | 160 | 33 | 64 | 125 | 32 | 90 |
DF-V250 x 3000L | 250 | 3000 | 3125 | 132.5 | 715 | 4 | 164 | 410 | 500 | 160 | 33 | 64 | 125 | 32 | 90 |
DF-V300 x 1000L | 300 | 1000 | 1150 | 140 | 870 | 1 | 225 | 490 | 600 | 195 | 33 | 70 | 140 | 35 | 105 |
DF-V300 x 2000L | 300 | 2000 | 2150 | 137.5 | 625 | 3 | 225 | 490 | 600 | 195 | 33 | 70 | 140 | 35 | 105 |
DF-V300 x 3000L | 300 | 3000 | 3150 | 145 | 715 | 4 | 225 | 490 | 600 | 195 | 33 | 70 | 140 | 35 | 105 |
DF-V400 x 1000L | 400 | 1000 | 1200 | 150 | 900 | 1 | 300 | 670 | 800 | 260 | 40 | 82 | 165 | 41 | 120 |
DF-V400 x 2000L | 400 | 2000 | 2200 | 147.5 | 635 | 3 | 300 | 670 | 800 | 260 | 40 | 82 | 165 | 41 | 120 |
DF-V400 x 3000L | 400 | 3000 | 3200 | 150 | 725 | 4 | 300 | 670 | 800 | 260 | 40 | 82 | 165 | 41 | 120 |
DF-V500 x 1000L | 500 | 1000 | 1250 | 160 | 930 | 1 | 375 | 840 | 1000 | 325 | 45 | 94 | 180 | 47 | 140 |
DF-V500 x 2000L | 500 | 2000 | 2250 | 157.5 | 645 | 3 | 375 | 840 | 1000 | 325 | 45 | 94 | 180 | 47 | 140 |
DF-V500 x 3000L | 500 | 3000 | 3250 | 156 | 730 | 4 | 375 | 840 | 1000 | 325 | 45 | 94 | 180 | 47 | 140 |
DF-V600 x 1000L | 600 | 1000 | 1300 | 170 | 960 | 1 | 450 | 1010 | 1200 | 390 | 54 | 100 | 195 | 50 | 160 |
DF-V600 x 2000L | 600 | 2000 | 2300 | 167.5 | 655 | 3 | 450 | 1010 | 1200 | 390 | 54 | 100 | 195 | 50 | 160 |
DF-V600 x 3000L | 600 | 3000 | 3300 | 170 | 740 | 4 | 450 | 1010 | 1200 | 390 | 54 | 100 | 195 | 50 | 160 |
DF-V800 x 1000L | 800 | 1000 | 1400 | 180 | 1040 | 1 | 600 | 1340 | 1600 | 520 | 72 | 136 | 270 | 68 | 260 |
DF-V800 x 2000L | 800 | 2000 | 2400 | 180 | 680 | 3 | 600 | 1340 | 1600 | 520 | 72 | 136 | 270 | 68 | 260 |
DF-V800 x 3000L | 800 | 3000 | 3400 | 180 | 760 | 4 | 600 | 1340 | 1600 | 520 | 72 | 136 | 270 | 68 | 260 |
DF-V1000 x 1500L | 1000 | 1500 | 2000 | 200 | 800 | 2 | 750 | 1680 | 2000 | 650 | 90 | 136 | 290 | 68 | 300 |
Features
Excellent Impact Resistance
V-type rubber fenders are designed to withstand the impact of
berthing vessels, effectively absorbing and dispersing energy. This
feature minimizes the risk of damage to both the vessel and the
dock, ensuring the safety of personnel and equipment.
High Elasticity and Durability
Constructed from high-quality rubber materials, these fenders offer
exceptional elasticity and durability. They can withstand harsh
weather conditions, heavy loads, and repeated impacts, maintaining
their performance over an extended period.
Easy Installation and Maintenance
V-type rubber fenders are easy to install and require minimal
maintenance. This convenience saves time and effort for operators,
allowing them to focus on other essential tasks. Regular inspection
and cleaning are recommended to ensure optimal performance.
Customizable Options
These fenders can be customized to meet specific requirements. They
are available in various sizes, shapes, and rubber hardness levels,
enabling users to select the most suitable option based on the
berthing conditions and the types of vessels being serviced. This
customization ensures optimal performance and maximum protection.
Applications
● Ports and Harbors
● Container Terminals
● Marinas and Yacht Clubs
● Ferry Terminals
● Oil and Gas Terminals
● Offshore Platforms
● Naval Bases
● Cruise Ship Terminals
● Fishing Docks
● Bulk Handling Facilities
Advantages
High Quality
Our V Type rubber fenders are manufactured using premium quality
materials and adhere to strict quality control standards, ensuring
durability and long-lasting performance.
Customization Options
We offer a wide range of customization options to meet specific
customer requirements, including size, shape, color, and
installation methods, providing a tailored solution for each
application.
Excellent Impact Resistance
Our V Type rubber fenders are designed to withstand high impact
forces, effectively absorbing and distributing the energy to
protect both vessels and structures from damage.
Expertise and Experience
With years of expertise and experience in rubber fender production,
we have a deep understanding of industry requirements and
continually strive to innovate and improve our products, ensuring
the highest level of customer satisfaction.
![]() |
